HORIZONTAL | VERTICAL | VFD CONSTANT PRESSURE
Packaged booster sets with horizontal or vertical multistage pumps, fixed-speed or VFD control, pressure vessels and smart panels. Wateria Technovation designs, supplies, installs and maintains pressure boosting systems for buildings, hotels, hospitals, industry and water treatment across India and the UAE.
Site Survey · Duty Point Sizing · Supply · Installation · Commissioning · AMC
THE RIGHT PRESSURE, AT THE RIGHT TIME, WITH THE LEAST ENERGY
BOOSTER SYSTEM OPTIONS
Every booster set starts with the right pump. We select horizontal or vertical multistage pumps for your flow, head and plant room, then add fixed-speed or variable-speed control to suit how your demand changes.

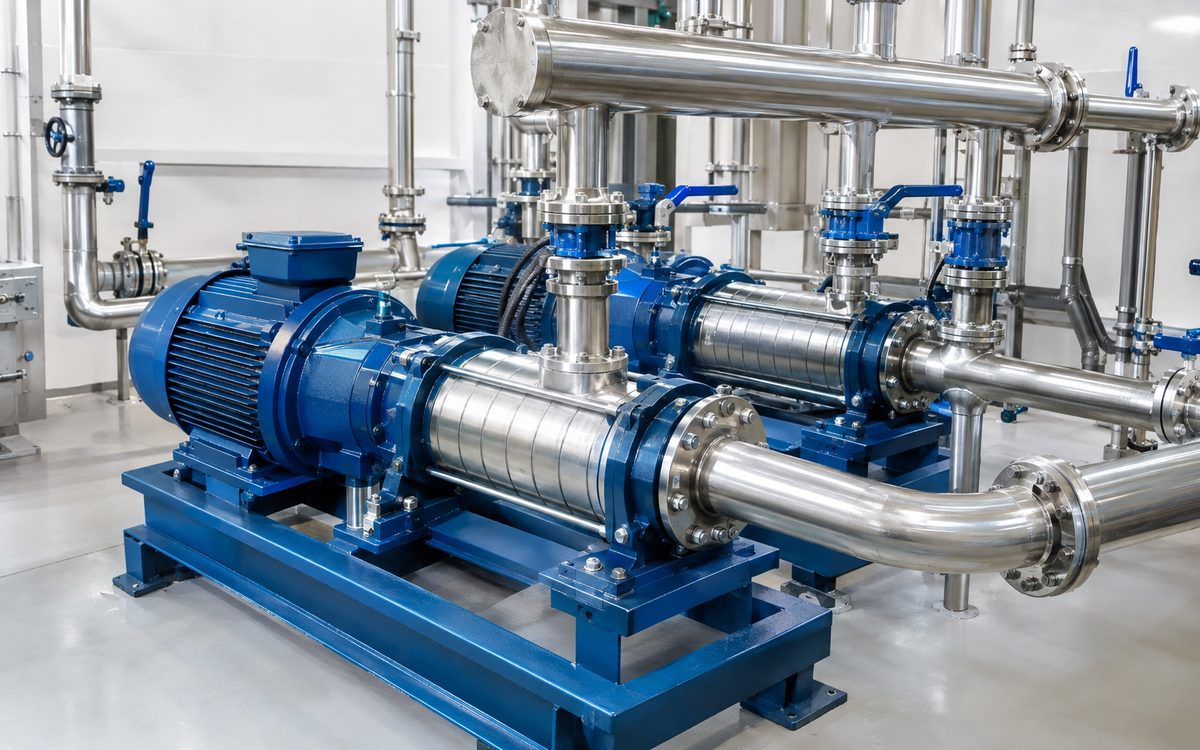

HOPTION 1 · HORIZONTAL
Horizontal multistage centrifugal pumps lie flat on a base frame, so the motor, seal and bearings are easy to reach. They suit plant rooms with low ceilings, suction from underground tanks, and duties that need higher flows at moderate heads.
Best for: basements with limited height, transfer and filling duties, irrigation, process water and RO feed.
VOPTION 2 · VERTICAL

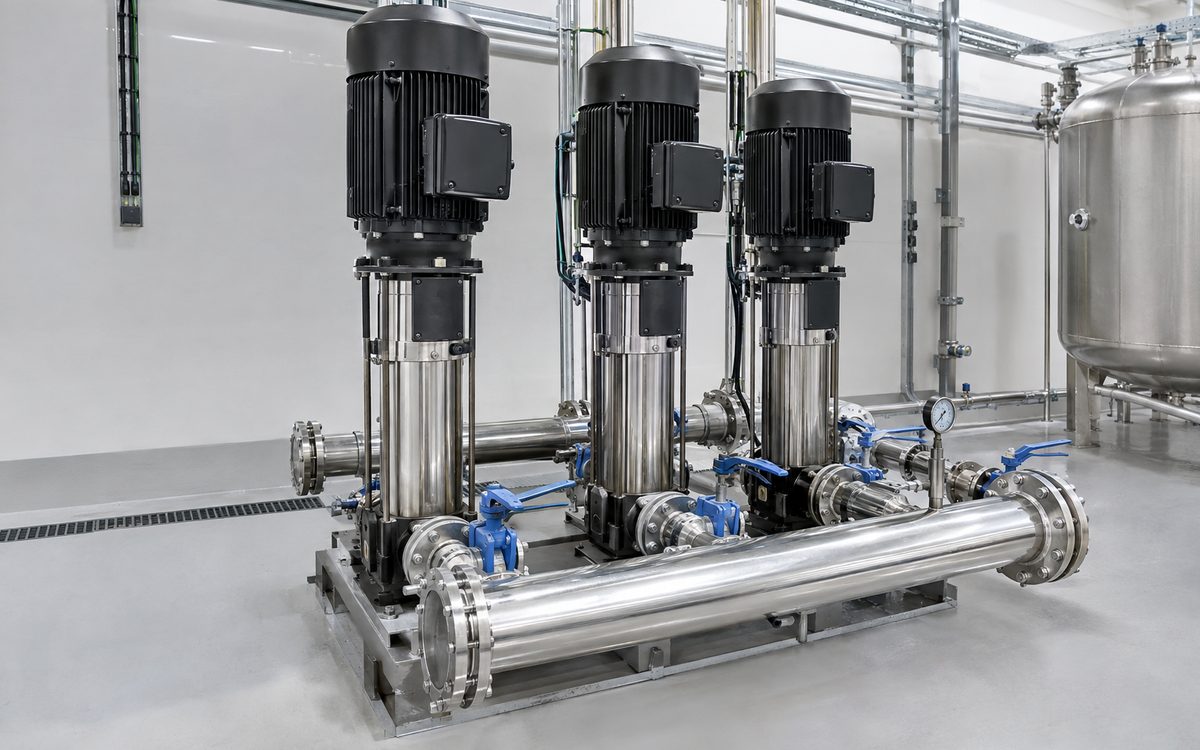

Vertical inline multistage pumps have suction and discharge on the same level and stand upright with the motor on top. Several pumps fit side by side on a compact skid, which saves floor space and keeps the piping simple, even at high heads.
Best for: high-rise towers, hotels, hospitals, commercial buildings and packaged multi-pump booster sets.

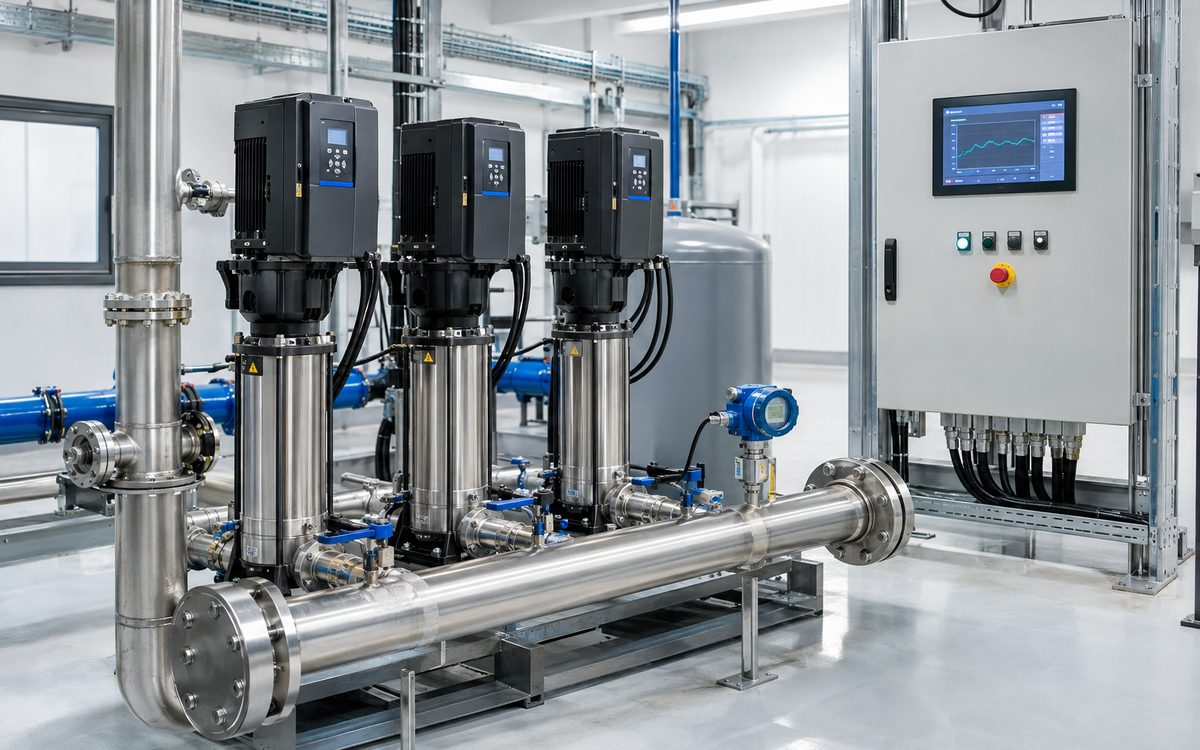

VFDOPTION 3 · VFD BASED
A variable frequency drive changes pump speed to match demand. A pressure transmitter on the discharge header tells the controller the actual pressure, and the drive speeds the pump up or slows it down to hold the set point, whether one tap or a hundred are open. Available with horizontal or vertical pumps.
Best for: buildings and plants where demand varies through the day, such as towers, hotels, hospitals, malls and district supply.
SYSTEMS & CONFIGURATIONS
From a compact booster for a villa to multi-pump sets for towers and townships. Each set is built on a common skid with manifolds, valves, pressure vessels and a control panel, and is factory tested before dispatch.
01Villas, apartments & small buildings

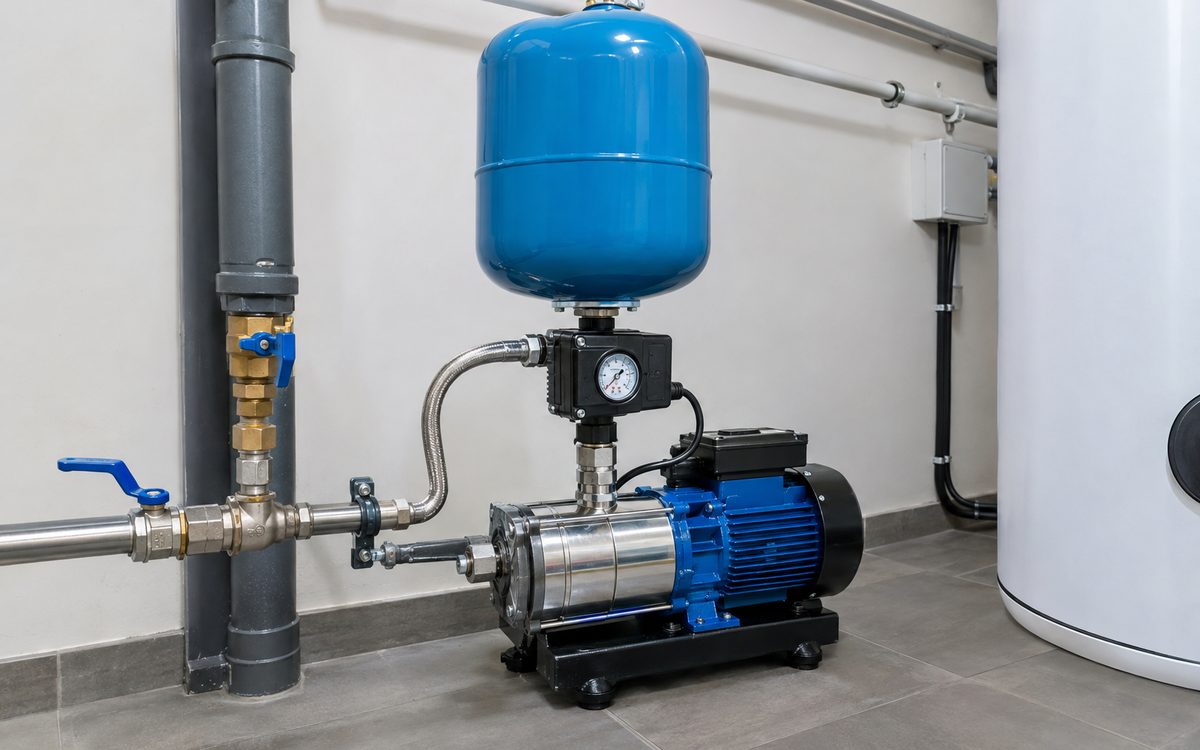

A single horizontal or vertical multistage pump with an electronic pressure controller or pressure switch and a small pressure vessel. It starts on demand and keeps a steady pressure at showers, kitchens and garden points.
Request Details →
022 pumps · 1 working + 1 standby

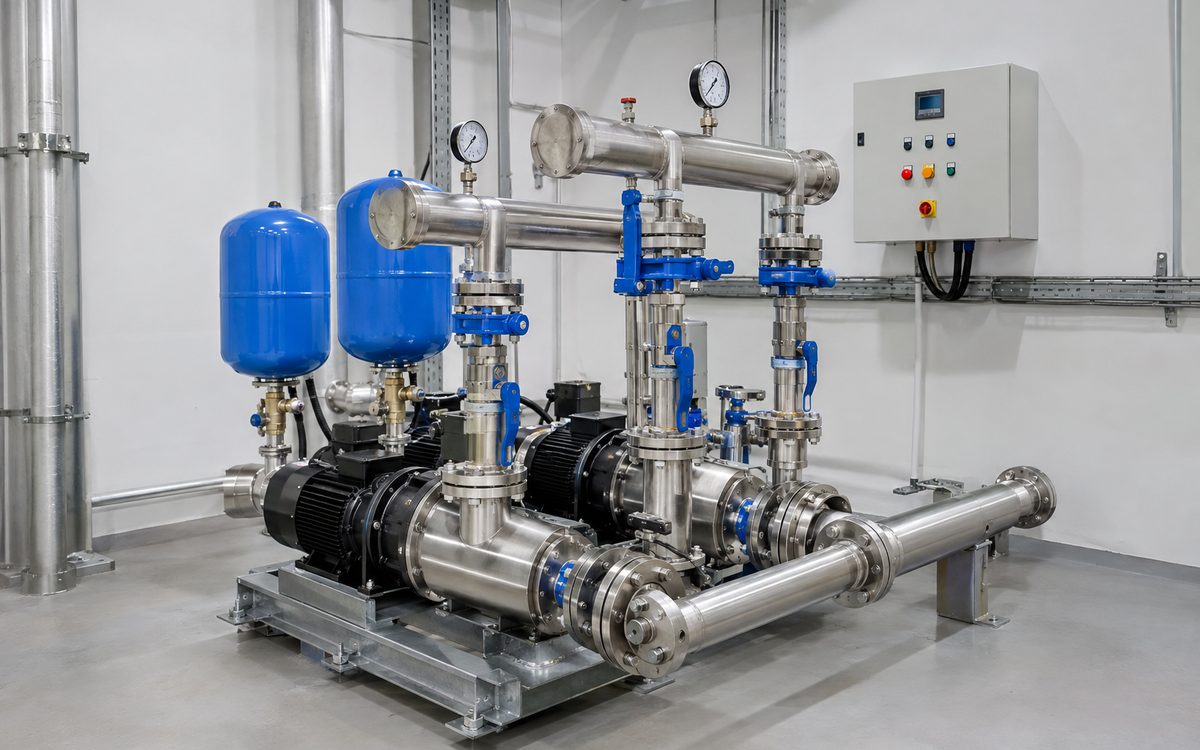

Two identical pumps on a common skid with manifolds, non-return and isolation valves. The pumps alternate automatically to share running hours, and the standby pump takes over if the duty pump trips.
Request Details →

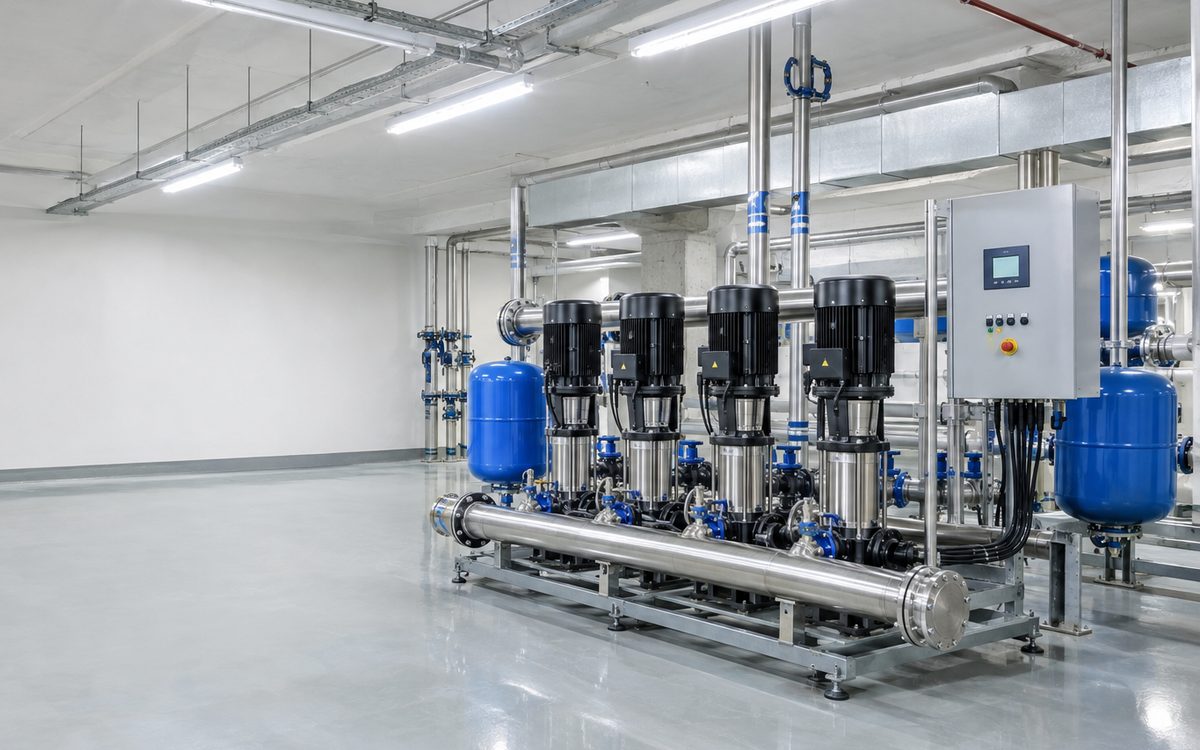

033 – 6 pumps · Fixed or variable speed
Larger packaged sets where pumps start and stop in sequence as demand rises and falls. Ideal for high-rise towers, hotels, hospitals and district supply where demand varies widely through the day.
Request Details →

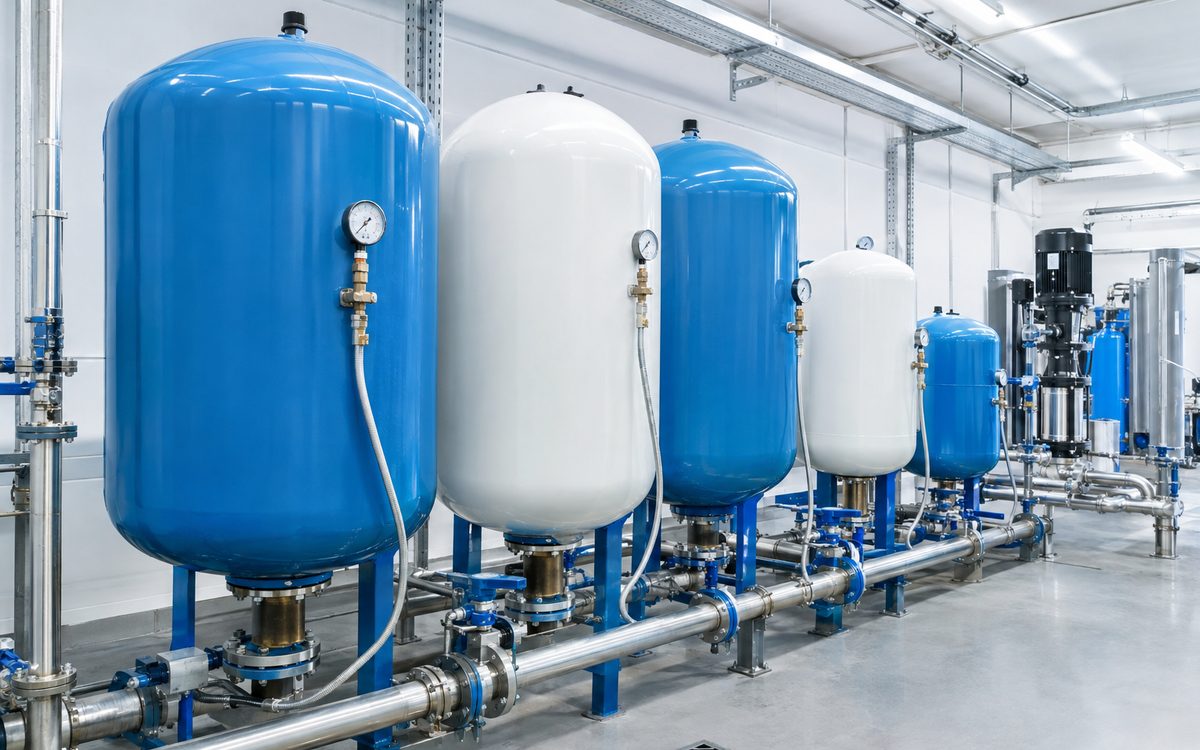

04Diaphragm / bladder tanks · 8 – 2,000 L
Pressure vessels store a small volume of pressurised water, cut the number of pump starts, cover small draw-offs at night and absorb pressure surges. Sized to suit each booster set.
Request Details →
05DOL · Star-delta · Soft starter · VFD · PLC

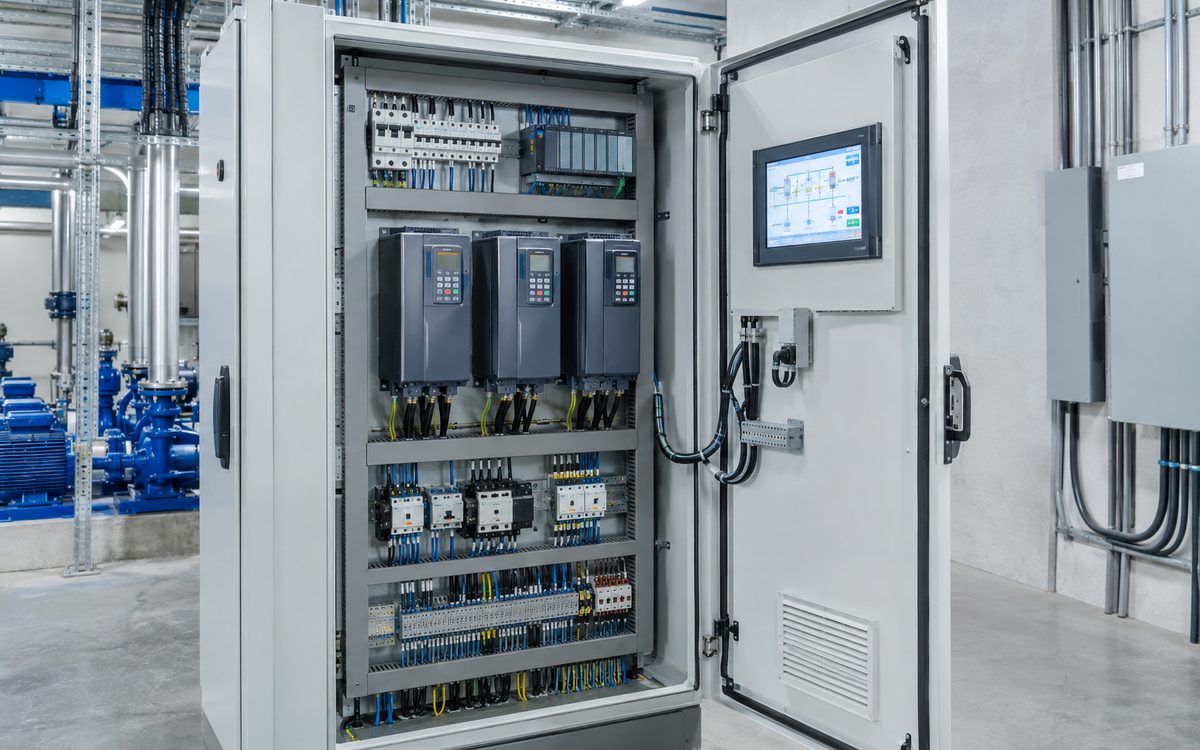

Control panels built for each set, with motor protection, auto/manual selection, dry-run and low/high pressure cut-outs, and optional PLC with touchscreen HMI for multi-pump logic.
Request Details →

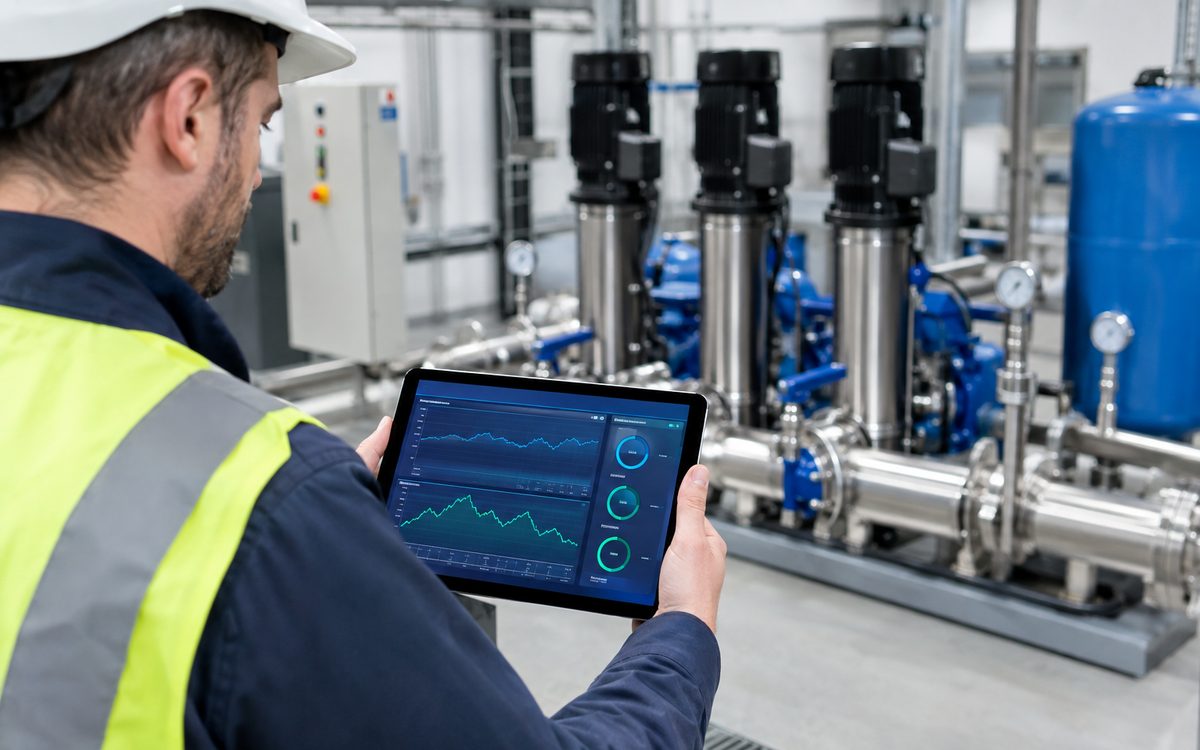

06Pressure, flow, energy & alarms online
Connect the booster set to a cloud dashboard to watch pressure, flow, running hours and energy use, and receive alarms by SMS or e-mail. It helps facility teams plan maintenance before a breakdown.
Request Details →
07Underground sump to overhead tanks

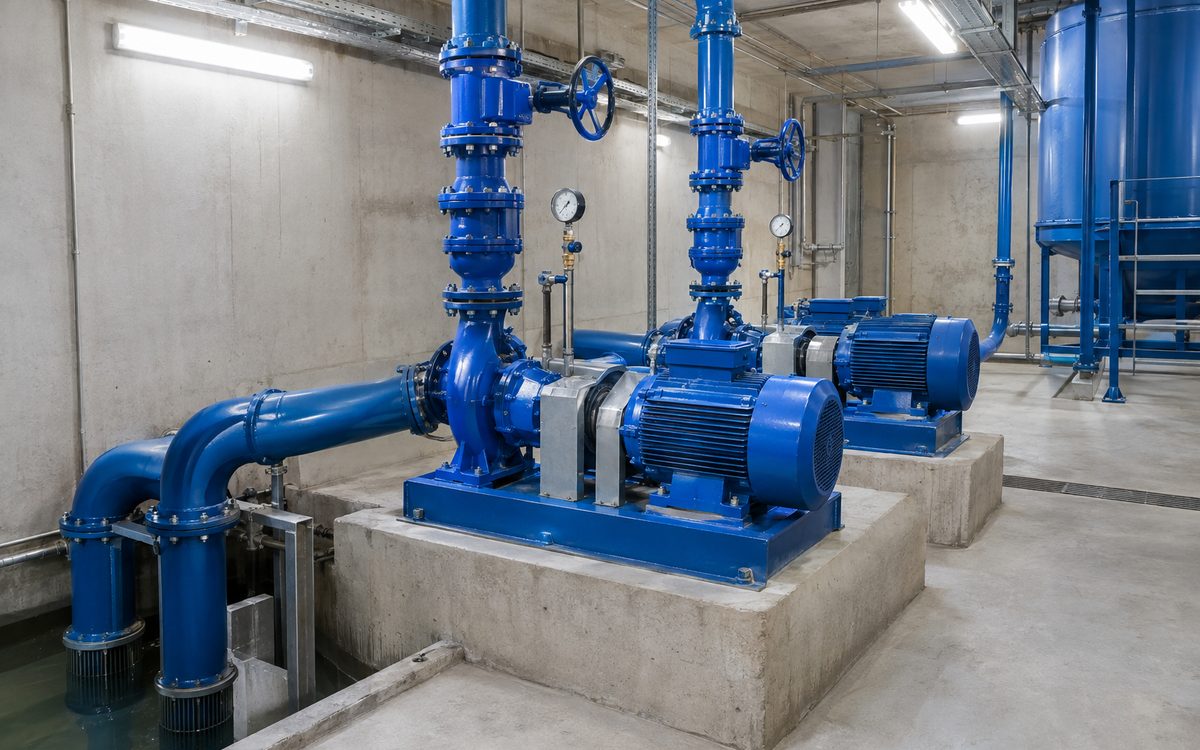

Duty / standby transfer pumps that fill rooftop and intermediate tanks from underground sumps, with level controls for automatic start and stop. Often combined with a booster set for the upper floors.
Request Details →
08Stainless steel 304 / 316 pumps

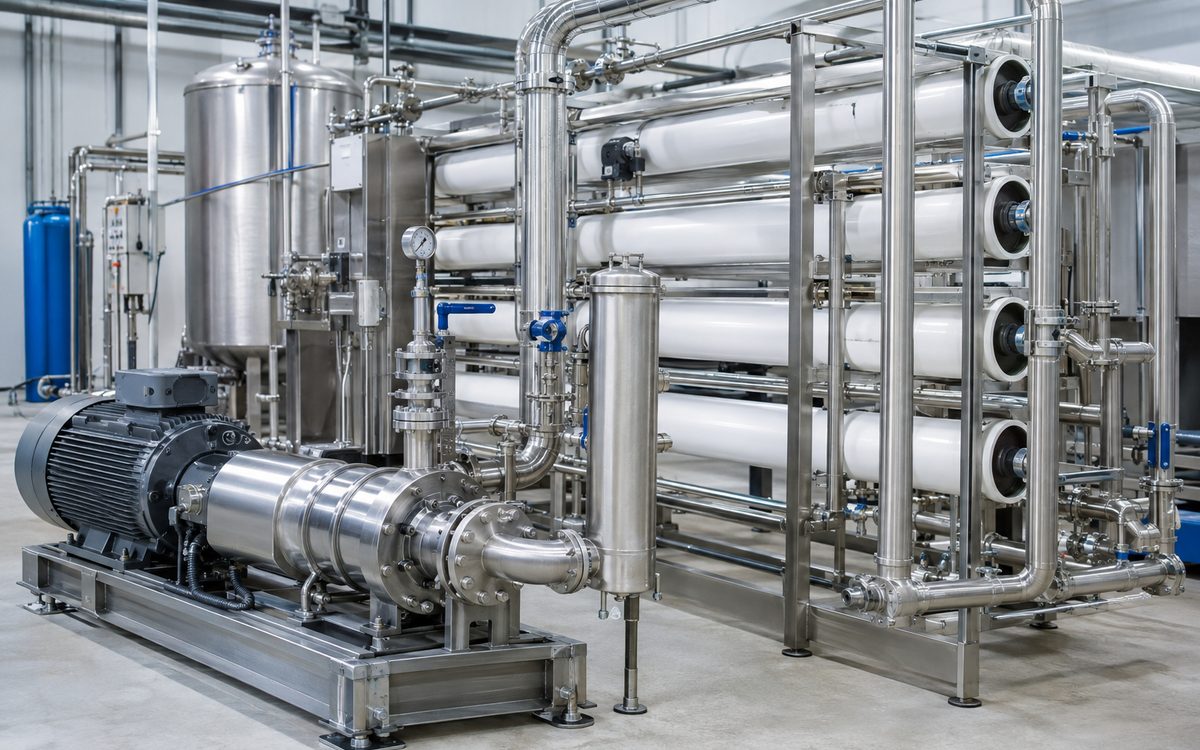

High-pressure boosters for RO plants, filtration skids, boiler feed, washing lines and industrial process water, built with stainless steel wetted parts and selected for continuous duty.
Request Details →

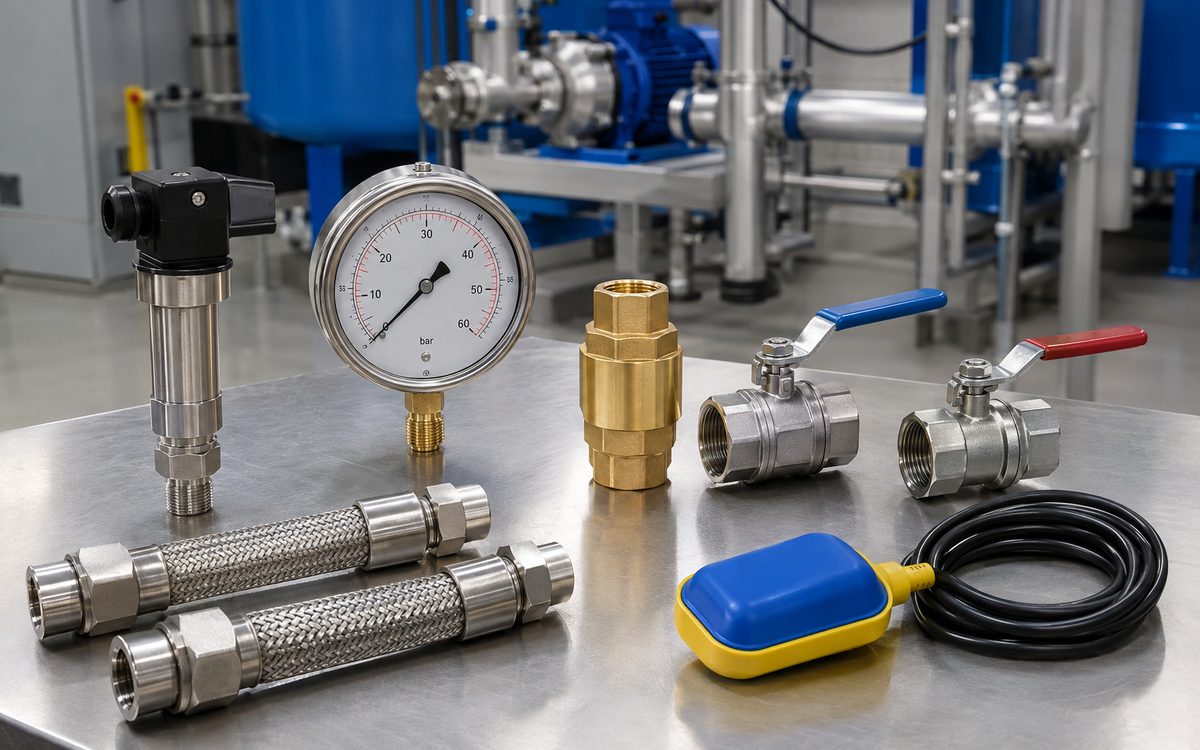

09Everything around the pump set
Pressure transmitters, gauges, non-return and isolation valves, flexible anti-vibration connectors, float and level switches, suction manifolds and spares for existing booster sets.
Request Details →HOW A VFD BOOSTER WORKS
Demand → Pressure transmitter → VFD → Pump speed
When taps open, pressure in the header starts to fall. The transmitter senses it and the drive speeds the pump up; when demand drops, the pump slows down or stops. In a multi-pump set, extra pumps join in cascade only when they are needed, and duty rotates so all pumps share the running hours.
Compare the Options →VFD CONSTANT PRESSURE LOOP
MULTI-PUMP CASCADE
QUICK SELECTION GUIDE
| Criteria | Horizontal Multistage | Vertical Multistage Inline | VFD-Based Booster Set |
|---|---|---|---|
| Pump layout | Pump and motor lie flat on a base frame | Pump stands upright, motor on top, inline ports | Horizontal or vertical pumps with variable speed drives |
| Floor space | Larger footprint, low height | Smallest footprint, needs headroom | Depends on pump type; no extra tanks needed |
| Typical flow & head | Up to ~160 m³/h, ~220 m | Up to ~200 m³/h per pump, ~320 m | Up to several hundred m³/h with 2 – 6 pumps |
| Pressure stability | Pressure switch band (fixed speed) | Pressure switch band (fixed speed) | Constant set point, typically ±0.1 – 0.2 bar |
| Energy use | Full speed when running | Full speed when running | Lowest at part load: speed matches demand |
| Maintenance | Easy access to motor and seal | Cartridge seal; motor lifted for service | Fewer starts and soft start extend pump life |
| Best use | Low-headroom rooms, transfer, irrigation, process | High-rise buildings, compact plant rooms, high heads | Variable demand: towers, hotels, hospitals, malls, districts |
Figures are typical industry ranges for multistage booster pumps and packaged booster sets. Final pump selection, number of pumps, motor rating and control type depend on the required flow and pressure (duty point), suction conditions, building height and demand profile.
INDUSTRIES WE SERVE
A quick guide to the booster configurations typically used in each sector. We confirm the final selection after a site survey and demand study.
| Industry | Typical Uses | Compact Single | Duty / Standby | Multi-Pump Cascade | VFD Constant Pressure | Pressure Vessels | IoT Monitoring |
|---|---|---|---|---|---|---|---|
| High-Rise Residential | Towers, apartments, upper-floor zones | – | ● | ● | ● | ● | ○ |
| Hotels & Resorts | Rooms, kitchens, laundry, landscaping | – | ○ | ● | ● | ● | ● |
| Hospitals & Healthcare | Wards, OTs, CSSD, 24/7 supply | – | ● | ● | ● | ● | ● |
| Commercial, Offices & Malls | Washrooms, food courts, cooling towers | – | ● | ● | ● | ● | ○ |
| Villas & Bungalows | Bathrooms, kitchens, gardens | ● | ○ | – | ○ | ● | – |
| Industrial Process | Washing, cooling, boiler feed, CIP | – | ● | ● | ● | ● | ○ |
| Water Treatment & RO Feed | RO, filtration, transfer | ○ | ● | ○ | ● | – | ○ |
| Irrigation & Landscaping | Drip, sprinklers, parks | ○ | ● | ○ | ● | ○ | – |
| Municipal & District Supply | Townships, network boosting | – | ○ | ● | ● | ● | ● |
| Labour Camps & Staff Housing | Shower blocks, kitchens | – | ● | ● | ○ | ● | ○ |

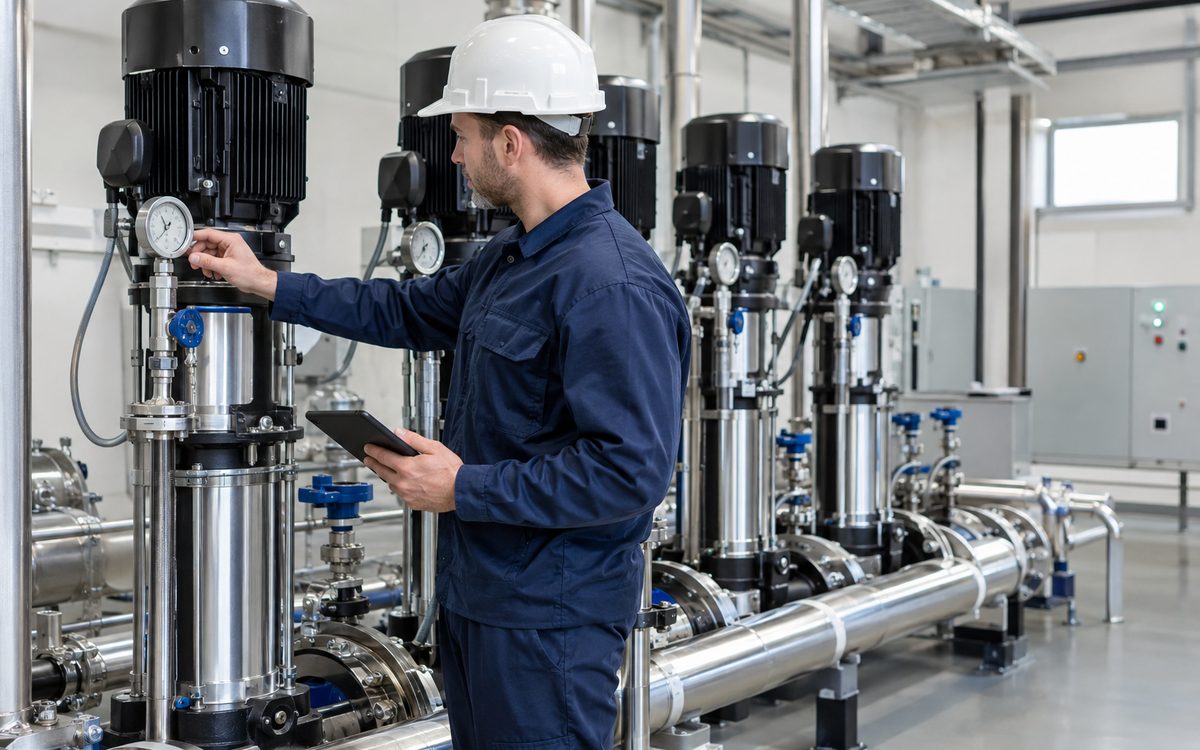

Why Choose Wateria Booster Systems
VFD control cuts part-load energy.
Same pressure on every floor.
Auto changeover, 24/7 supply.
Skid-mounted, accessible layout.
PLC, HMI, BMS and IoT options.
Wateria service teams in India & UAE.
HOW WATERIA SUPPORTS YOU
Building height, outlets, tanks, peak demand and plant room.
Flow, head, pump type, number of pumps and control.
Skid-mounted set, vessels, panel, piping and cabling.
Set points, cascade logic, alarms and pressure tests.
Seal and bearing checks, vessel pre-charge, spares and AMC.
Steady pressure on every floor, with less energy.
Share your building height, number of outlets or required flow and pressure. Our team will select the right horizontal, vertical or VFD-based booster set and send a techno-commercial offer.
