Ravi Aircon Pvt. Ltd.Supplied & supported by Wateria Technovation
AIR HANDLING UNITS | FAN COIL UNITS | FRESH AIR & VENTILATION
REVO air handling units, smart AHUs, fan coil units, fresh air and exhaust units, evaporative coolers, coils and air scrubbers from Ravi Aircon, made in India since 1996. Wateria Technovation selects, supplies, installs, commissions and services Ravi Aircon systems across India and the Middle East.
Heat Load Study · Unit Selection · Supply · Installation · Commissioning · AMC
AIR MANAGEMENT EQUIPMENT FOR THE HVAC INDUSTRY
FEATURED PRODUCT
An AHU with its own brain. Controls, sensors and valves come factory-fitted, so the unit can run on its own or plug straight into your building management system.

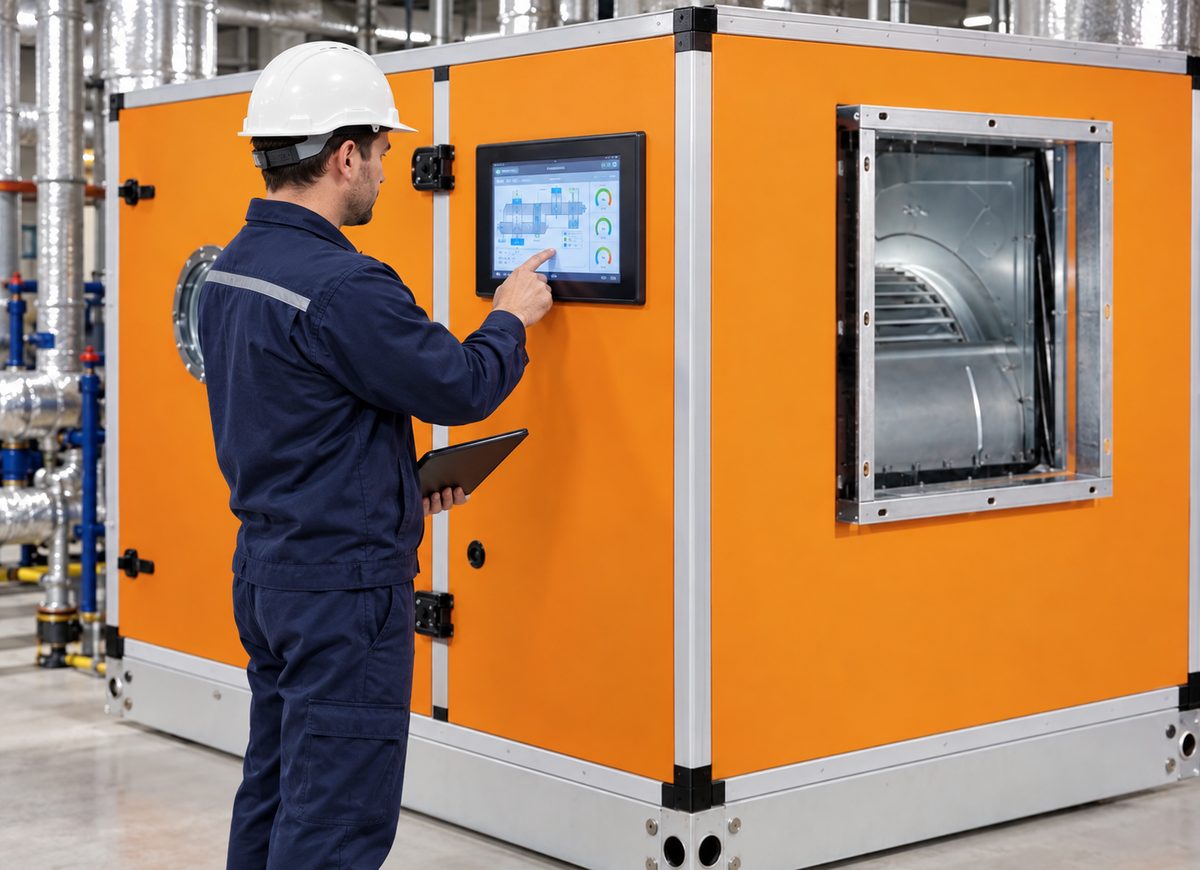

AHURAVI AIRCON · REVO SMART AHU
The controller and HMI display are designed by REVO. It suits buildings that have no BMS, as well as larger buildings where the AHU must link to an existing BMS. The integrated control system can be operated remotely.
Options: filtration for the required indoor air quality, UV lamps, heater, humidifier, hydrophilic or anti-corrosive coil coating, and heat recovery by wheel or coil.
RAVI AIRCON PRODUCT RANGE
From a 1 TR fan coil in a hotel room to 35,000 CFM double-skin AHUs and 70,000 CFM evaporative coolers. Every unit is designed, manufactured and assembled by Ravi Aircon at its Bhiwadi plant in Rajasthan.
01Built-in controls · Modbus · BMS ready
A modern air handling unit with its own AHU controller, built-in control panel, sensors and control valve. The REVO HMI controller runs the unit stand-alone in buildings without a BMS, or links it to an existing BMS and fire alarm system.
Request Datasheet →

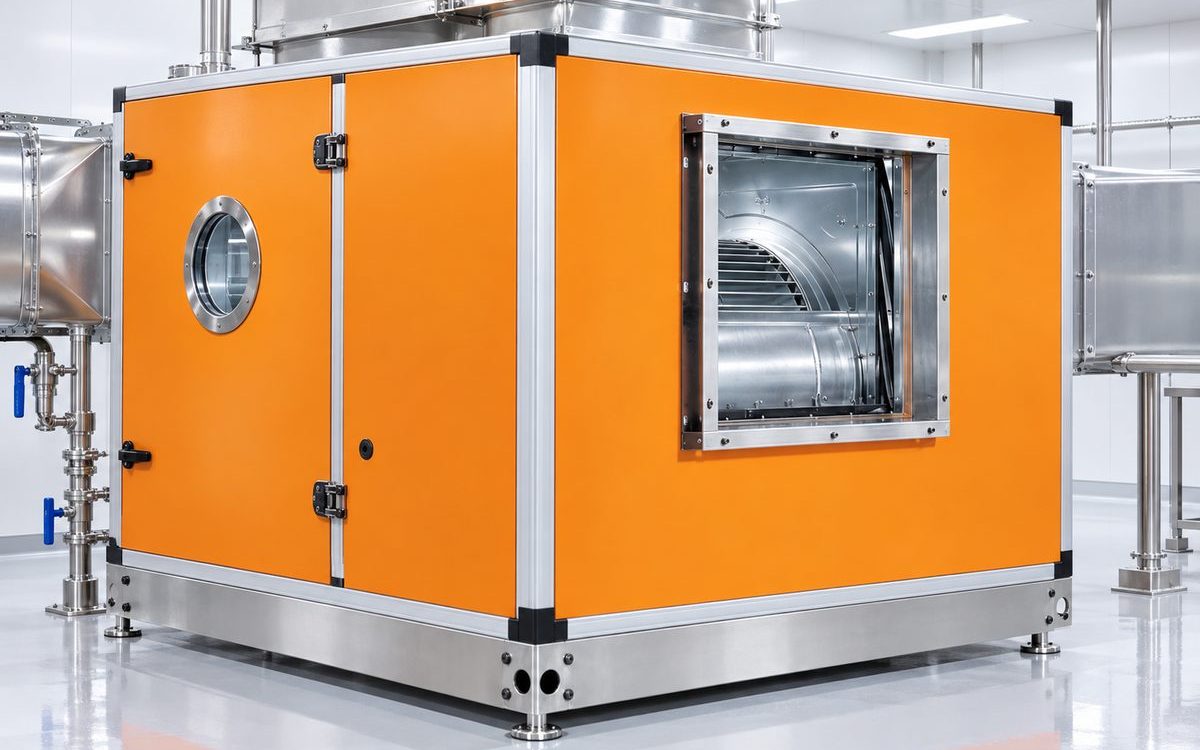

02Clean rooms, OTs, labs & food
Double-skin AHUs for pharmaceutical plants, hospitals, laboratories and food processing, with corrosion-resistant thermal-break profiles, a multi-slope hygienic drain pan and staged filtration up to HEPA terminals.
Request Datasheet →

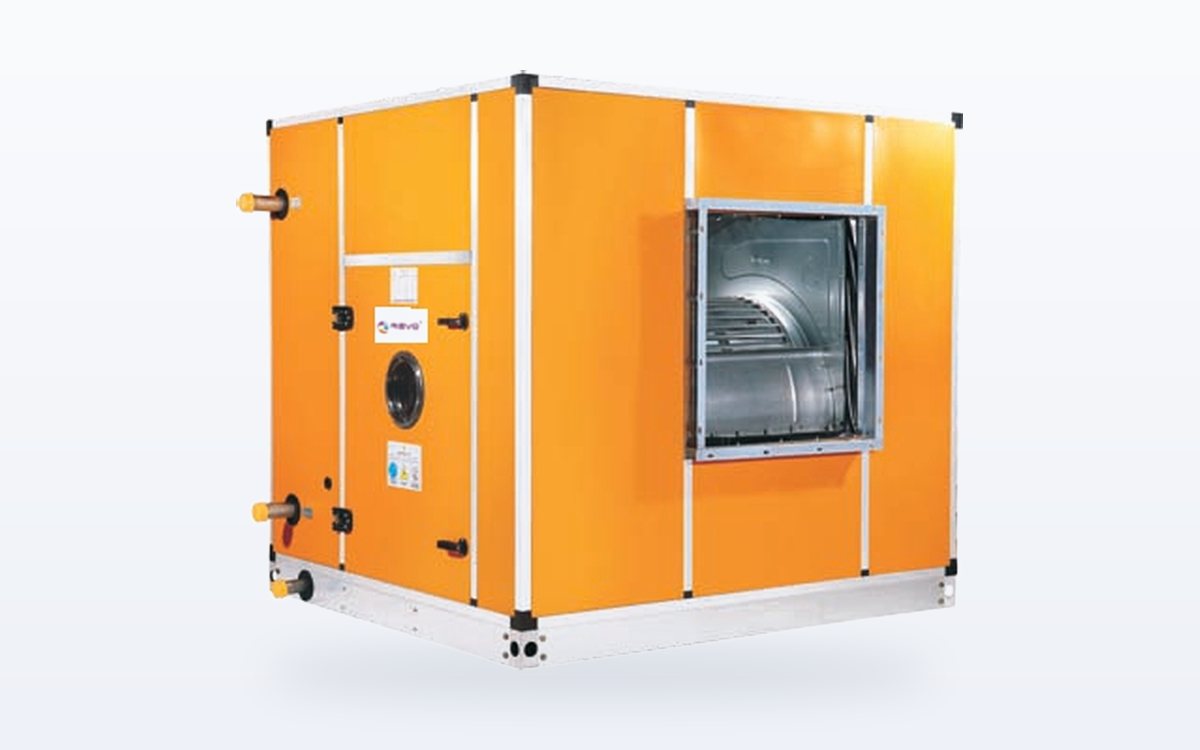

03RAFMU series · 1,200 – 35,000 CFM
Single or double-skin horizontal AHUs with chilled water or DX coils, for offices, malls, hospitals and auditoriums. 40 standard models with 2.4 to 70 sq.ft coil face area and fans for 40 or 50 mm static pressure.
Request Datasheet →

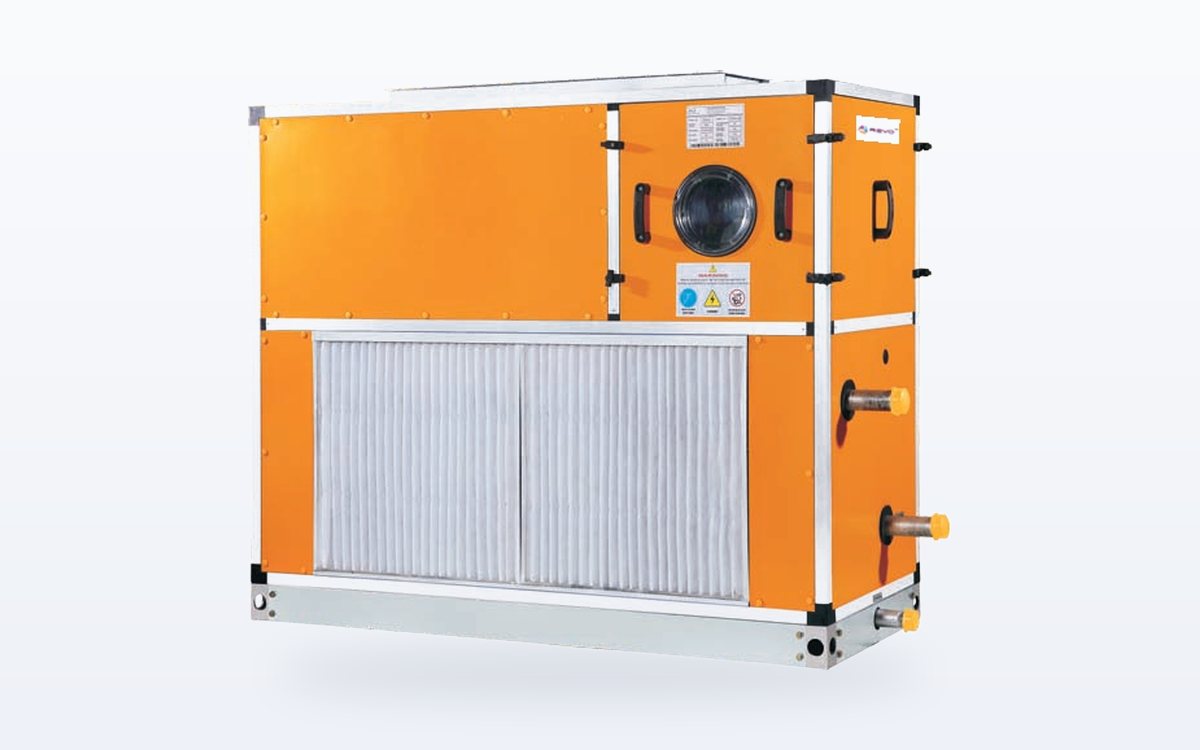

04RAVU series · 1,200 – 18,000 CFM
A compact upright AHU for plant rooms with limited floor area, with single or twin fans and a front return-air grille. 15 standard models with 30, 40 or 50 mm WG static pressure options.
Request Datasheet →

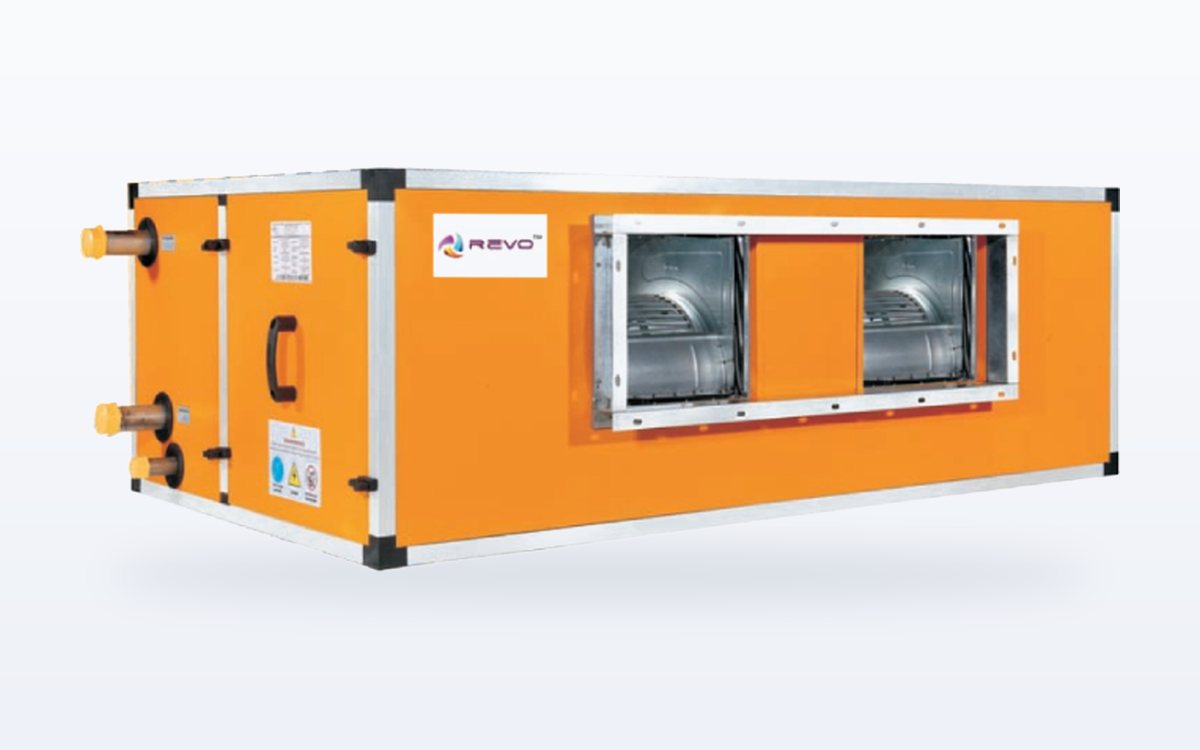

05RACSU series · 1,200 – 12,000 CFM
Double-skin AHUs hung above false ceilings, so no plant room is needed. Single-blower models run from 1,200 to 6,000 CFM and double-blower models from 2,500 to 12,000 CFM, at 30 or 40 mm WG.
Request Datasheet →

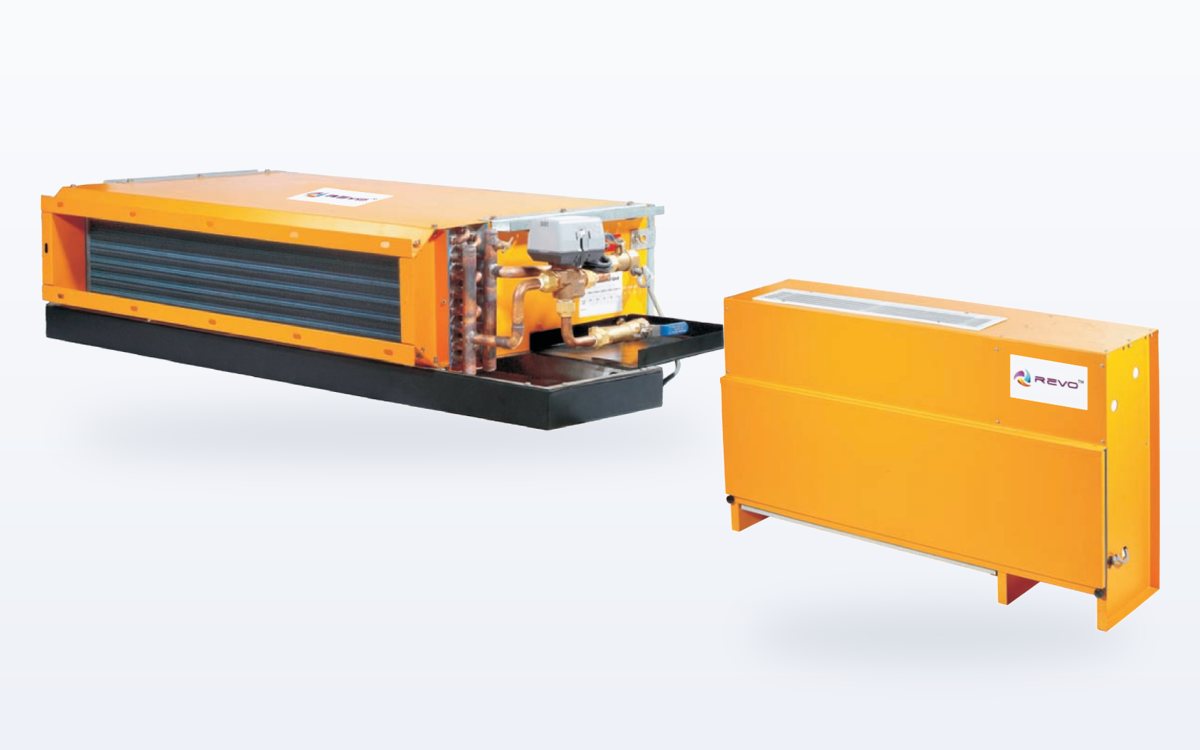

06RAFCU series · 1.0 – 3.0 TR · 400 – 1,200 CFM
Horizontal (concealed ceiling) and vertical (floor console) fan coil units with 3-speed motors, copper-tube aluminium-fin coils and 12 mm washable pre-filters. A Smart FCU version is also available.
Request Datasheet →

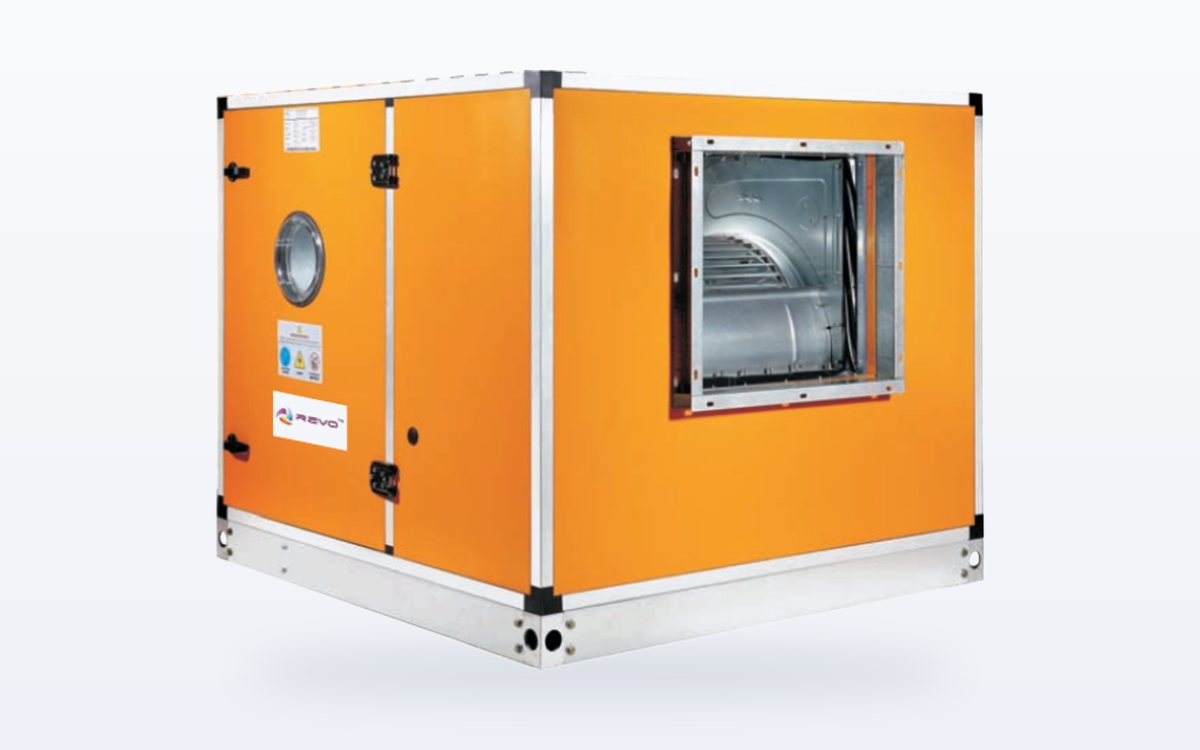

07RAFAU series · 1,200 – 35,000 CFM
Single or double-skin fresh air units that filter and cool outdoor air before it enters the building, keeping indoor air quality high and the load on the main AHUs low. 15 standard models.
Request Datasheet →

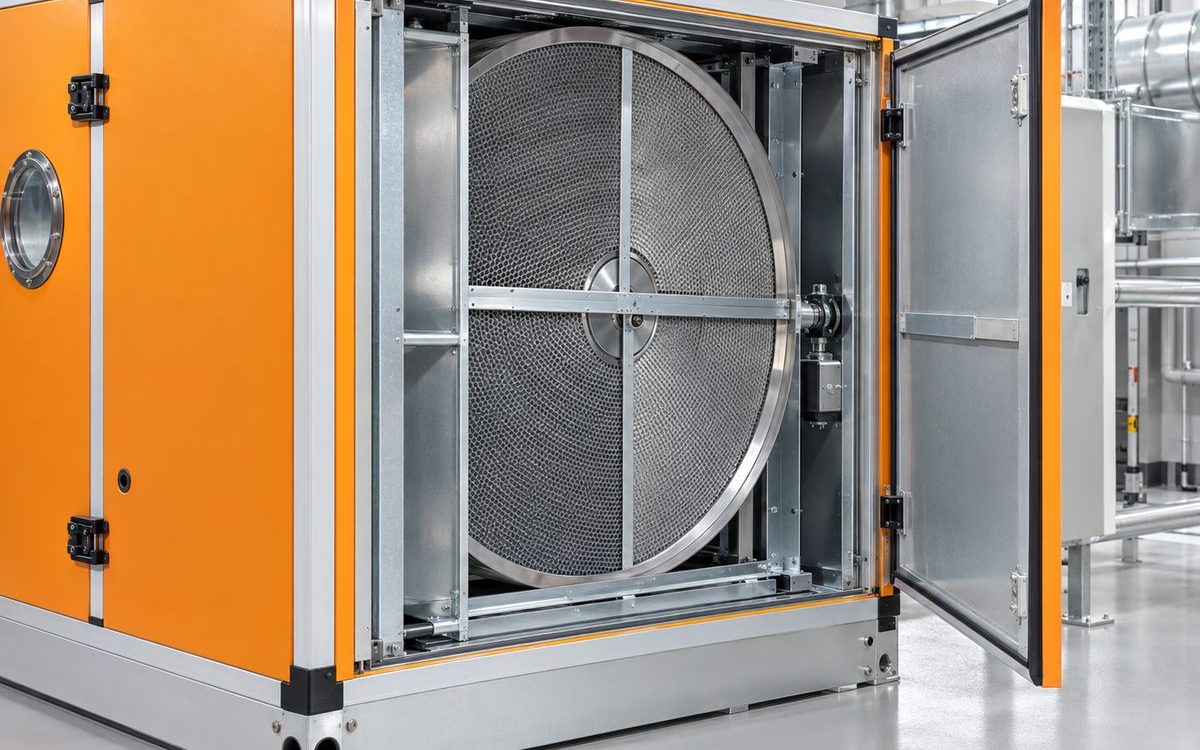

08Energy recovery for fresh air
A rotary heat wheel that transfers heat (and moisture, with an enthalpy wheel) between exhaust and incoming fresh air. It reduces the cooling load on fresh air, which matters most in hot, humid climates such as the Gulf.
Request Datasheet →
09RAEAU series · 1,200 – 35,000 CFM
Single or double-skin exhaust units for toilets, kitchens, car parks, labs and process areas, matched to the fresh air units for a balanced building. 15 standard models at 40 or 50 mm static.
Request Datasheet →

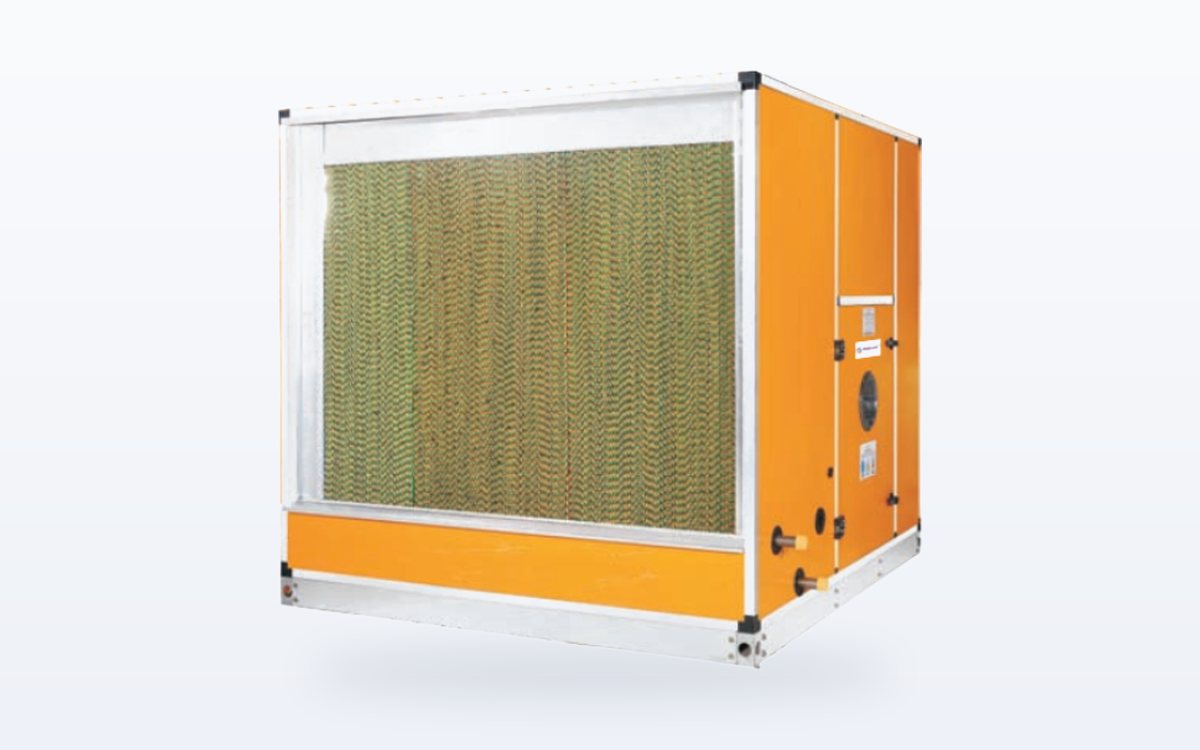

10RAAWU series · 3,000 – 70,000 CFM
Single or double-skin evaporative cooling units and air washers with cellulose pads. They give low-cost cooling and ventilation for factories, warehouses, kitchens and large halls, using far less power than refrigeration.
Request Datasheet →

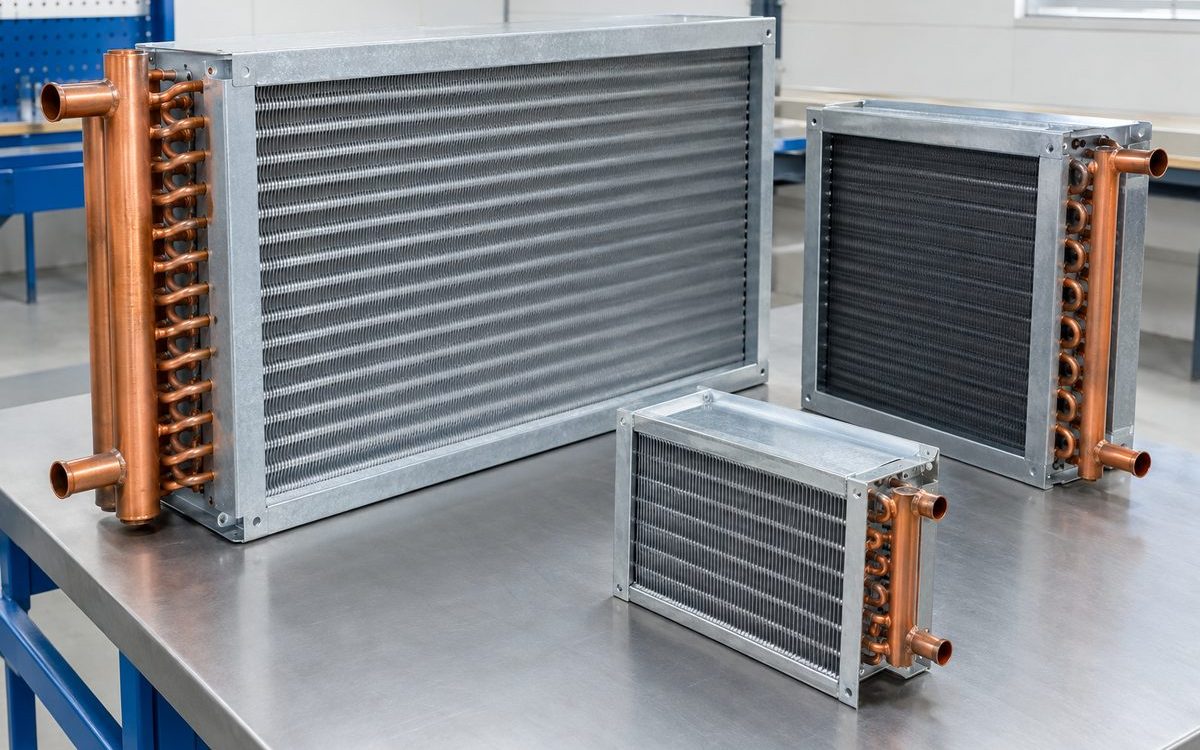

11Chilled water, DX & heating coils
Copper-tube, aluminium-fin coils for new AHUs and for replacing coils in existing units. Hydrophilic or anti-corrosive coatings protect coils in coastal and polluted air.
Request Datasheet →

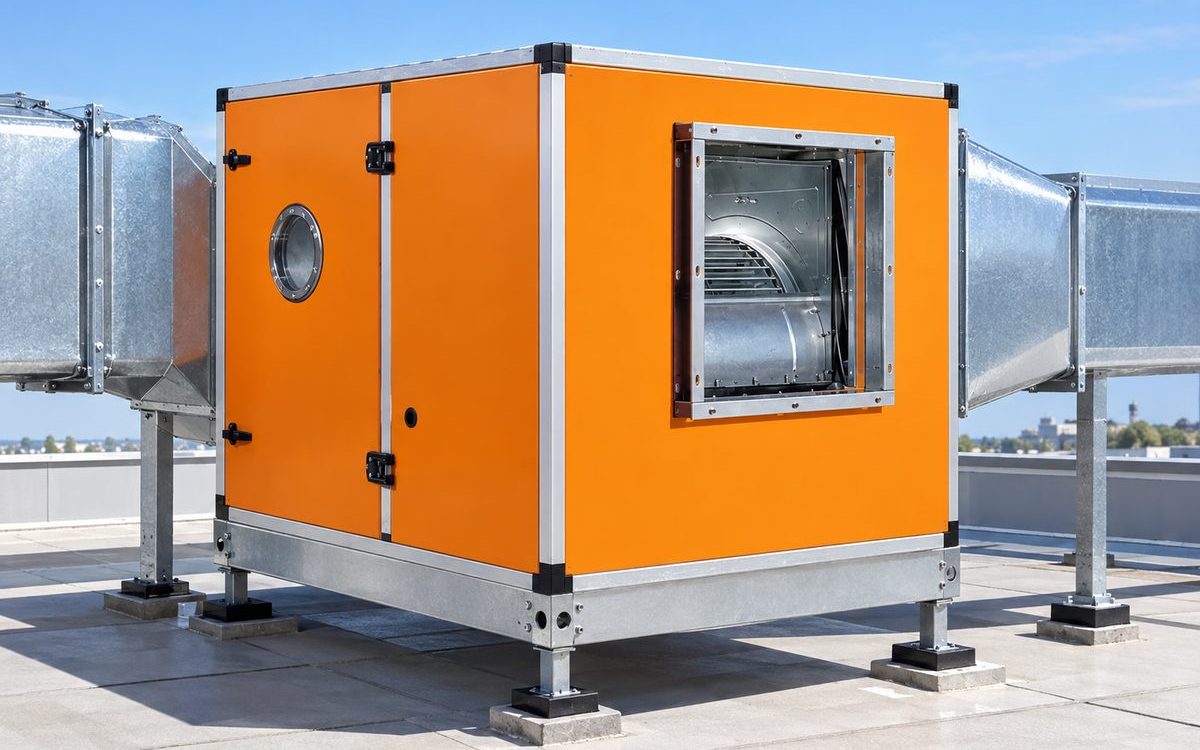

12Dry and wet scrubbers
Dry and wet air scrubbers that remove dust, odours and gases from fresh air or exhaust air, for kitchens, labs, hospitals and industrial ventilation.
Request Datasheet →HOW AN AIR HANDLING UNIT WORKS
Fresh air → Filtration → Cooling / heating → Supply
The AHU mixes fresh and return air, filters it, cools or heats it over the coil and pushes it through the ducts with a centrifugal fan. Double-skin panels with thermal-break profiles keep energy in and stop condensation on the casing. On a Smart AHU the built-in controller reads the sensors and adjusts the valve and fan to hold the set conditions.
Model Selection Guide →AIR PATH THROUGH THE AHU
SMART AHU CONTROL LOOP
QUICK SELECTION GUIDE
| Series | Unit Type | Air Volume | Static Pressure | Motor Range | Models |
|---|---|---|---|---|---|
| RAFMU | Horizontal floor-mounted AHU, single / double skin | 1,200 – 35,000 CFM | 40 / 50 mm | 0.75 – 18.5 kW | 40 |
| RAVU | Vertical AHU, single or twin blower | 1,200 – 18,000 CFM | 30 / 40 / 50 mm WG | 0.5 – 5.5 kW (×2) | 15 |
| RACSU | Ceiling suspended AHU, single blower | 1,200 – 6,000 CFM | 30 / 40 mm WG | 0.37 – 2.2 kW | 11 |
| RACSU | Ceiling suspended AHU, double blower | 2,500 – 12,000 CFM | 30 / 40 mm WG | 1.1 – 5.5 kW | 14 |
| RAFAU | Fresh air unit, single / double skin | 1,200 – 35,000 CFM | 30 / 40 mm | 0.37 – 15 kW | 15 |
| RAEAU | Exhaust air unit, single / double skin | 1,200 – 35,000 CFM | 40 / 50 mm | 0.75 – 18.5 kW | 15 |
| RAAWU | Evaporative air cooling unit | 3,000 – 70,000 CFM | 40 / 50 mm WG | 1.1 – 18.5 kW (×2) | 35 |
| RAFCU | Fan coil unit, horizontal or vertical | 400 – 1,200 CFM (1 – 3 TR) | – | 1/20 – 1/8 HP, 3-speed | 5 + 5 |
Data from Ravi Aircon's published model tables. Motor kW is the range across models at the listed static pressures. Dimensions and ratings are subject to change by the manufacturer; final selection depends on heat load, air volume, static pressure and site conditions.
INDUSTRIES WE SERVE
A quick guide to the Ravi Aircon units typically used in each sector. We confirm the final selection after a heat load and ventilation study.
| Industry | Typical Areas | Smart AHU | Pharma AHU | Floor & Vertical AHU | Ceiling AHU | Fan Coil Units | Fresh Air & Heat Recovery | Exhaust Units | Evaporative & Air Washer | Air Scrubbers |
|---|---|---|---|---|---|---|---|---|---|---|
| Commercial Buildings & Offices | Offices, IT parks, banks | ● | – | ● | ● | ● | ● | ● | – | – |
| Auditoriums & Convention Halls | Halls, theatres, stadiums | ● | – | ● | ○ | – | ● | ● | ○ | – |
| Malls & Multiplexes | Retail, cinemas, food courts | ● | – | ● | ● | ● | ● | ● | – | ○ |
| Educational Institutions | Classrooms, labs, hostels | ○ | – | ● | ● | ● | ● | ● | ○ | – |
| Hospitals & Healthcare | OTs, ICUs, wards, labs | ● | ● | ● | ○ | ● | ● | ● | ○ | ○ |
| Pharma & Clean Rooms | Sterile, OSD, API areas | ● | ● | ○ | – | – | ● | ● | – | ○ |
| Technology Centres & Data | Control rooms, server halls | ● | – | ● | ○ | – | ● | ○ | – | – |
| Hotels & Hospitality | Rooms, banquets, kitchens | ● | – | ● | ● | ● | ● | ● | – | ○ |
| Food & Beverage | Processing, packing, cold areas | ○ | ● | ● | – | – | ● | ● | ○ | ○ |
| Factories & Warehouses | Production halls, stores | ○ | – | ● | – | – | ○ | ● | ● | ○ |
| Embassies & Government | Offices, residences, hospitals | ● | – | ● | ● | ● | ● | ● | – | – |
ABOUT THE BRAND
Ravi Aircon Pvt. Ltd. is an ISO 9001:2015 company that designs and manufactures air handling products for the HVAC industry. Its units serve clean rooms in pharma and semiconductor plants, food and beverage, hospitality, hospitals, and industrial and commercial cooling and ventilation.
Trusted by:
Why Choose Ravi Aircon with Wateria
Efficient units for a lower energy footprint.
Efficient fans, motors and heat recovery.
Right-sized units for each heat load.
Easy-clean panels and hygienic drain pans.
HMI, Modbus and BMS integration.
Wateria service teams in India & UAE.
HOW WATERIA SUPPORTS YOU
Cooling load, fresh air and air change needs for each zone.
AHU, FCU, TFA or evaporative series, coils, filters and controls.
Ravi Aircon units delivered and installed on site.
Air balancing, BMS integration and performance checks.
Filter changes, coil cleaning, spares and annual contracts.
Get the right Ravi Aircon units for your building.
Share your drawings, heat load, air volume (CFM) or the number of rooms and areas. Our team will select the right AHUs, fan coil units, fresh air or evaporative units and send a techno-commercial offer.
