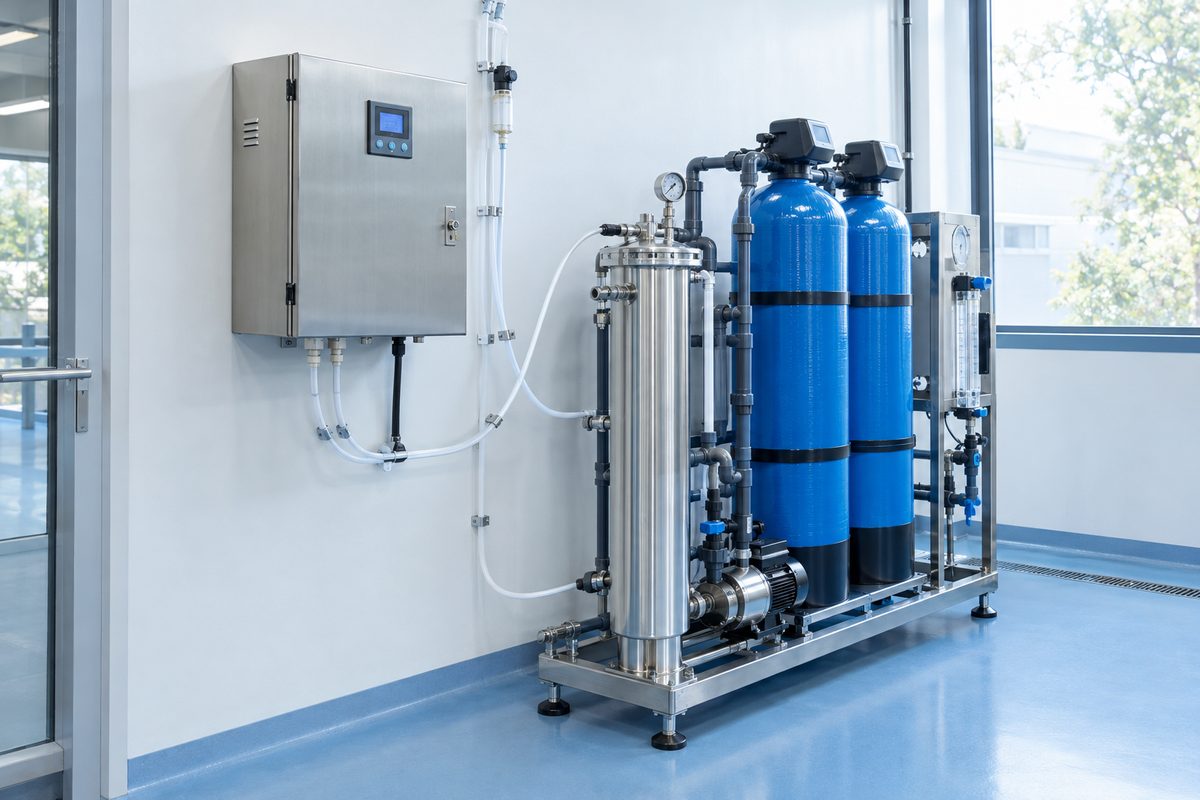

01Compact Ozonators
0.5 g/h – 100 g/h
Air- or oxygen-fed units for laboratories, small drinking water plants, packaged water, pools, aquaculture tanks and room-scale air treatment.
Request Datasheet →
OZONE GENERATORS | WATER DISINFECTION | AIR TREATMENT
Ozonators
Nature's Strongest Oxidant, Generated On Site
Ozone generators and complete ozonation systems for drinking water, process water, wastewater, cooling towers, pools and aquaculture, plus indoor and exhaust air treatment. Wateria Technovation sizes, supplies, installs, commissions and services ozonators across India and the Middle East.
Application Study · Treatability Trial · Ozone Sizing · Supply · Commissioning · Service
CHEMICAL-FREE. RESIDUE-FREE. REVERTS TO OXYGEN.
- 5 g/h to 150 kg/hLab-scale to municipal capacity
- Corona DischargeTube & plate-type plasma cells
- Water + AirDisinfection, oxidation & odour control
- PLC & Ozone MonitorsDose control and safety interlocks
- India + UAESupply & support by Wateria
OZONATOR RANGES
The Right Ozonator for Every Capacity and Application
From compact units for small plants and rooms to multi-kilogram systems for municipal water and effluent duty. We select the generator, feed gas, cooling and injection method for your flow, ozone demand and contact time.
01

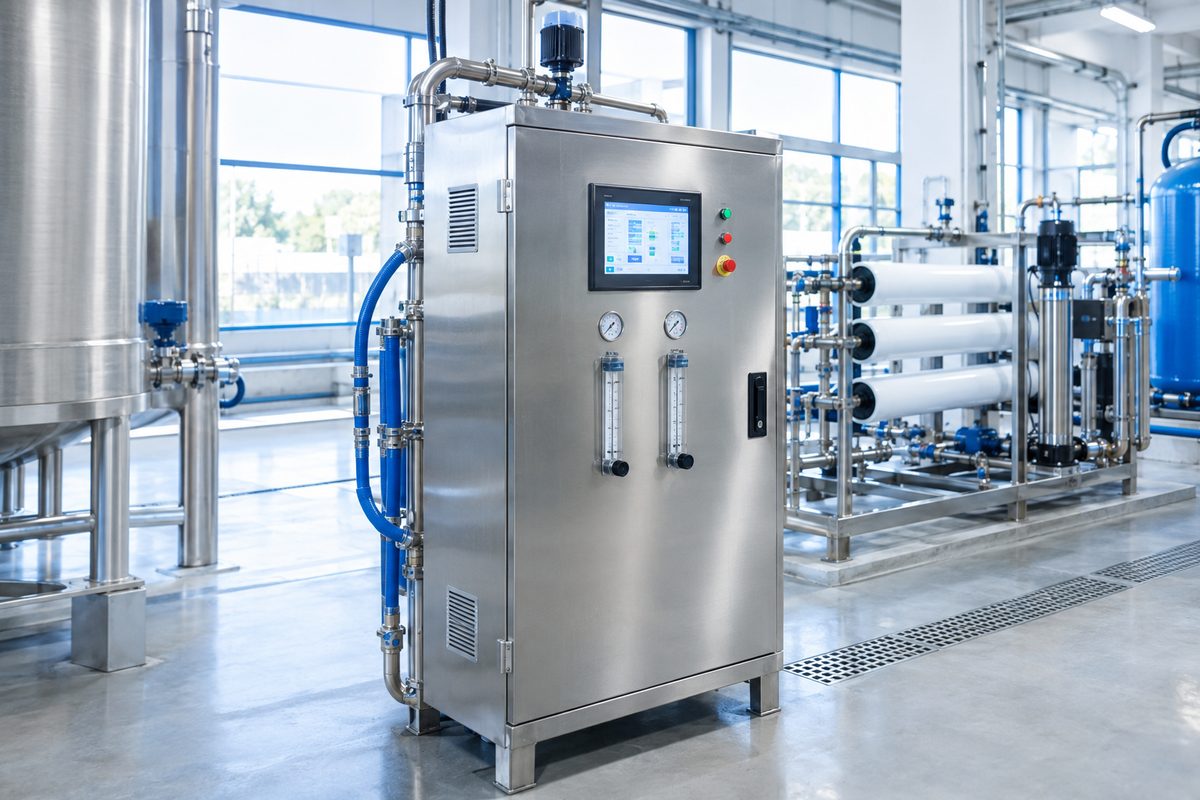

02Industrial Ozonators
200 g/h – 800 g/h
Oxygen-fed, water-cooled generators in stainless cabinets for process water, STP / ETP polishing, cooling towers and food & beverage plants.
Request Datasheet →

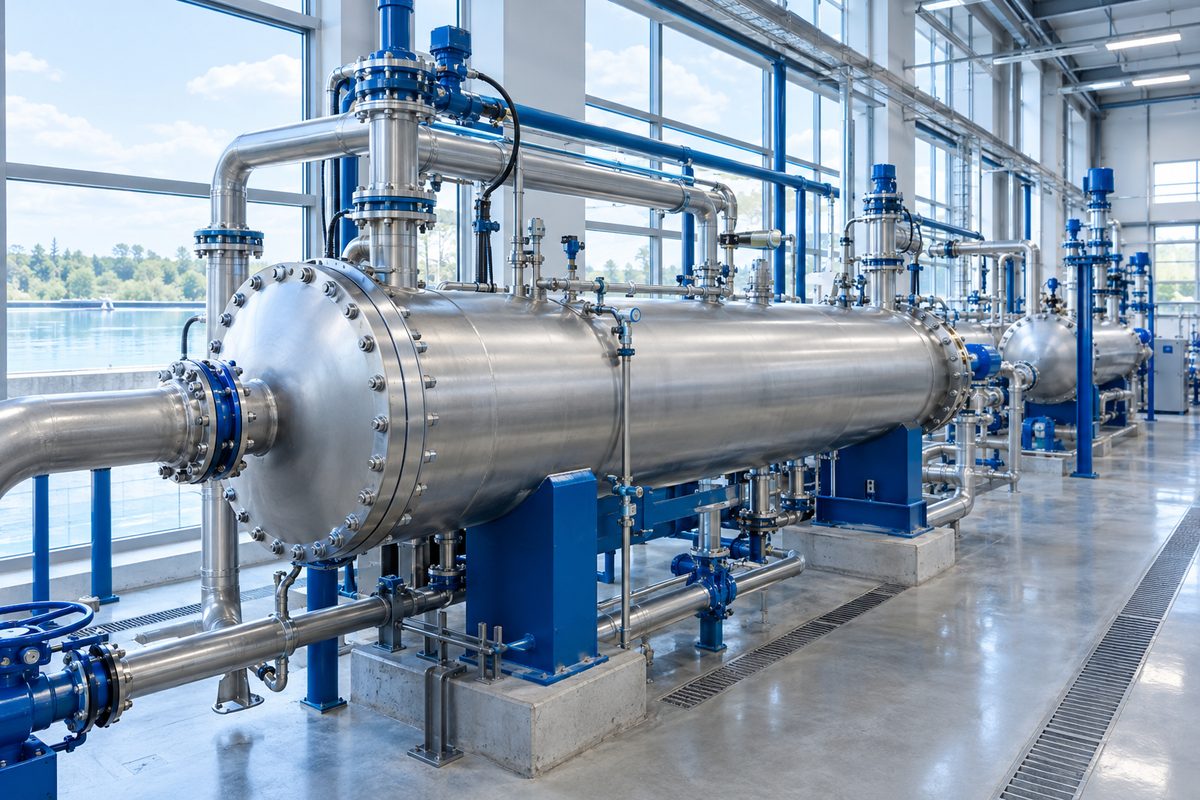

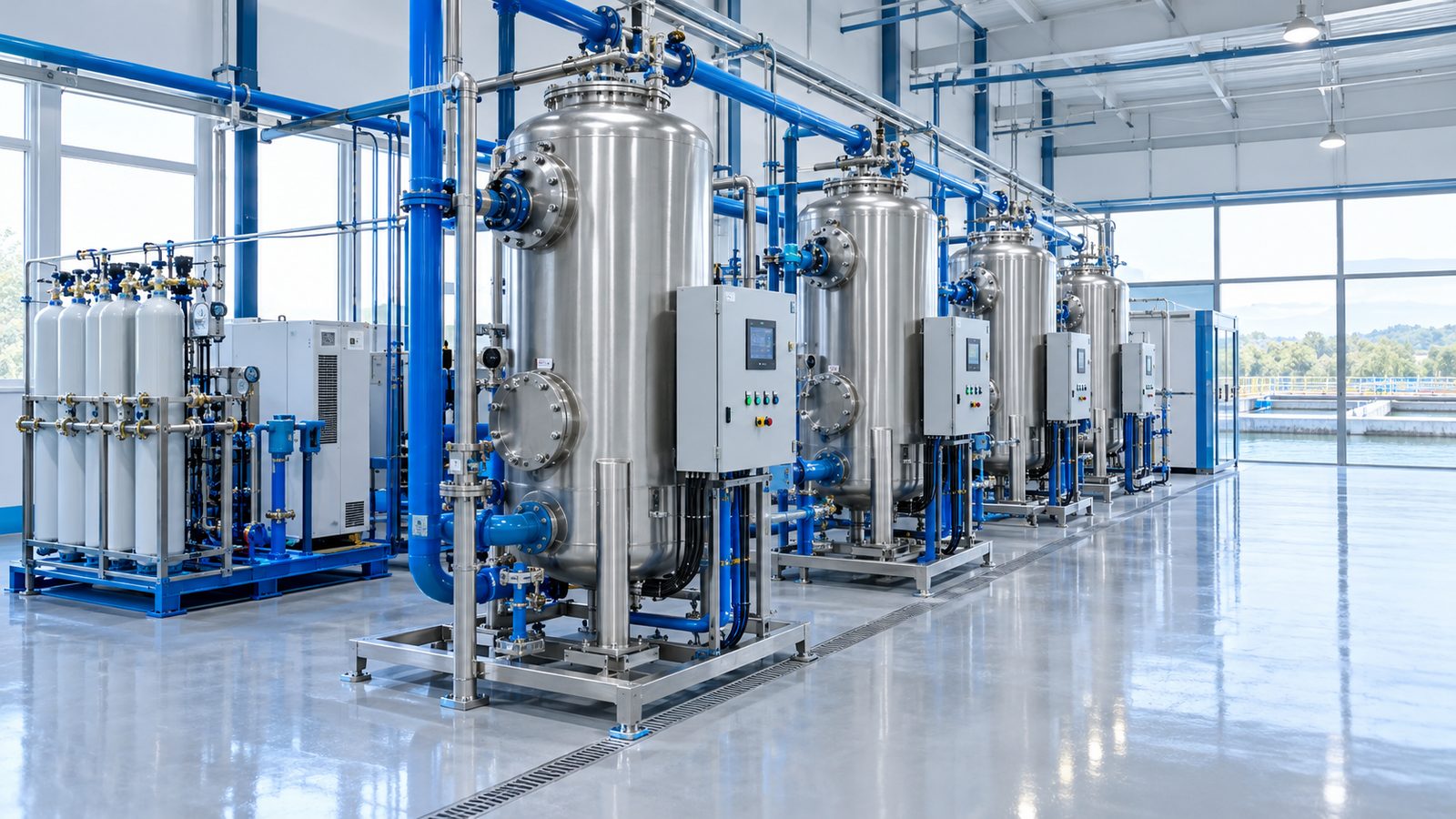

03Large Ozone Generators
1 kg/h – 150 kg/h
Multi-tube, water-cooled vessels for municipal drinking water, large sewage reuse schemes, pulp & paper and textile effluent decolourisation.
Request Datasheet →

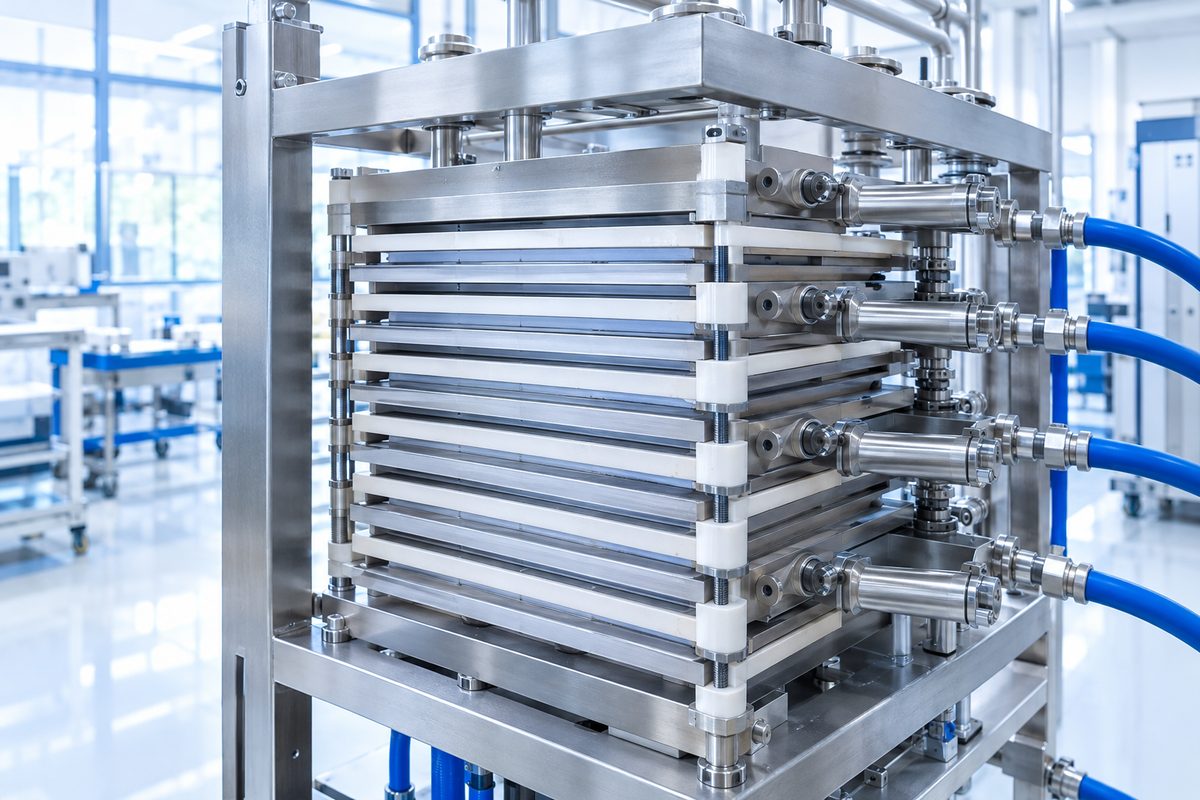

04High-Concentration Plasma Ozonators
Plate-type & tube-type plasma cells
Micro-gap dielectric barrier discharge modules that deliver high ozone concentration with low energy use, in a modular, scalable build.
Request Datasheet →

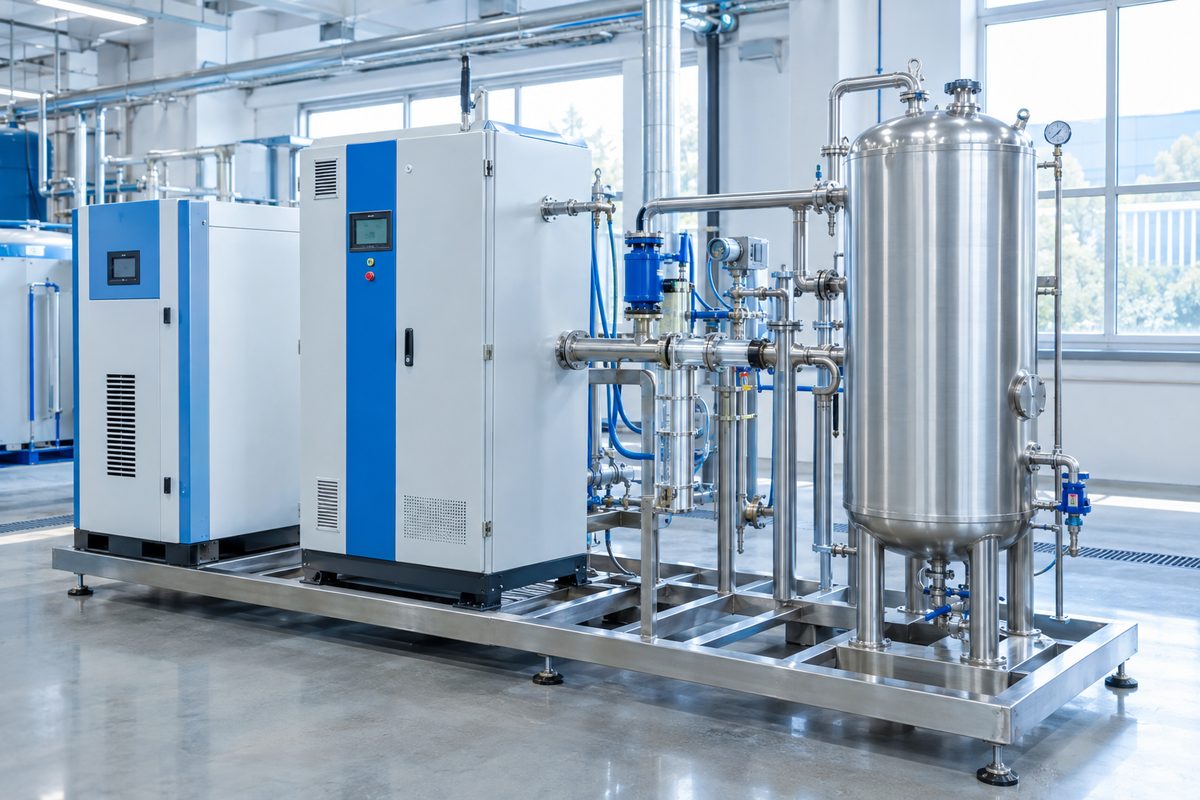

05Skid-Mounted Ozone Water Systems
Complete, pre-piped ozonation packages
Oxygen concentrator, ozonator, venturi injector, static mixer, contact tank and off-gas ozone destructor on a single tested frame.
Request Datasheet →

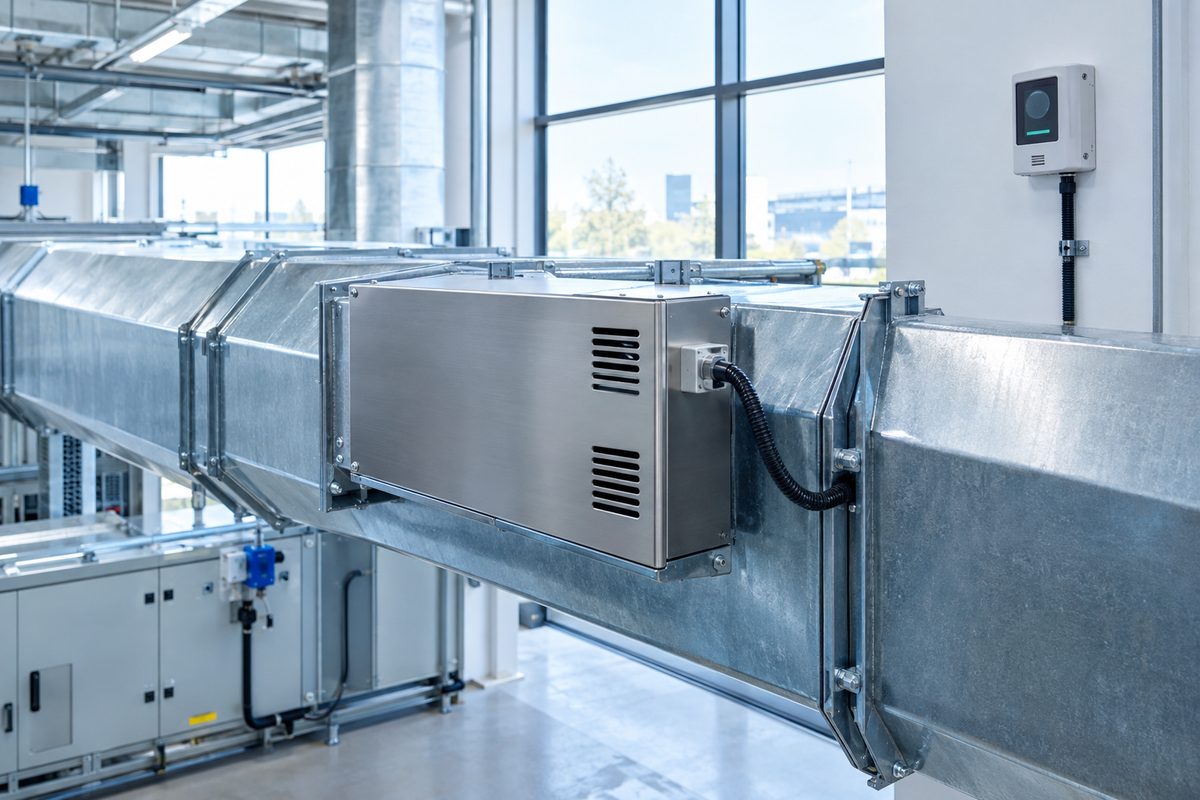

06Air Treatment Ozonators
Indoor & exhaust air, odour control
Duct-mounted and wall-mounted units dosing controlled, low-concentration ozone into AHUs or exhaust streams, interlocked with ambient ozone monitors.
Request Datasheet →HOW OZONATION WORKS
From Oxygen
to Ozone to Oxygen
Corona discharge splits O2 and recombines it as O3
Dry air or concentrated oxygen passes through a high-voltage discharge gap. The ozone produced is dissolved into water through a venturi or diffusers, or dosed into air ducts. It oxidises bacteria, viruses, cysts, odours, colour, iron, manganese and organics, then decays back to oxygen. Because ozone cannot be stored, it is always generated on site.
Ozone vs Other Methods →WATER OZONATION PROCESS
- 1Feed Gas
Air / oxygen - 2Dryer / Oxygen Concentrator
- 3Ozone Generator
Corona discharge - 4Venturi / Diffuser Injection
- 5Contact Tank
C × T - ✓Disinfected Water
AIR TREATMENT PROCESS
- AIndoor / Exhaust Air
- BDuct-Mounted Ozonator
- CControlled Low Dose
- DAmbient Ozone Monitor
- EOdour-Free Air
APPLICATIONS IN WATER DISINFECTION
Ozone for Safer, Cleaner Water
Ozone inactivates bacteria, viruses and chlorine-resistant cysts in minutes, while also removing colour, taste, odour, iron and manganese, without adding chemicals or leaving a residue.
Drinking & Municipal Water
Pre- and post-ozonation, iron and manganese oxidation, taste and odour control

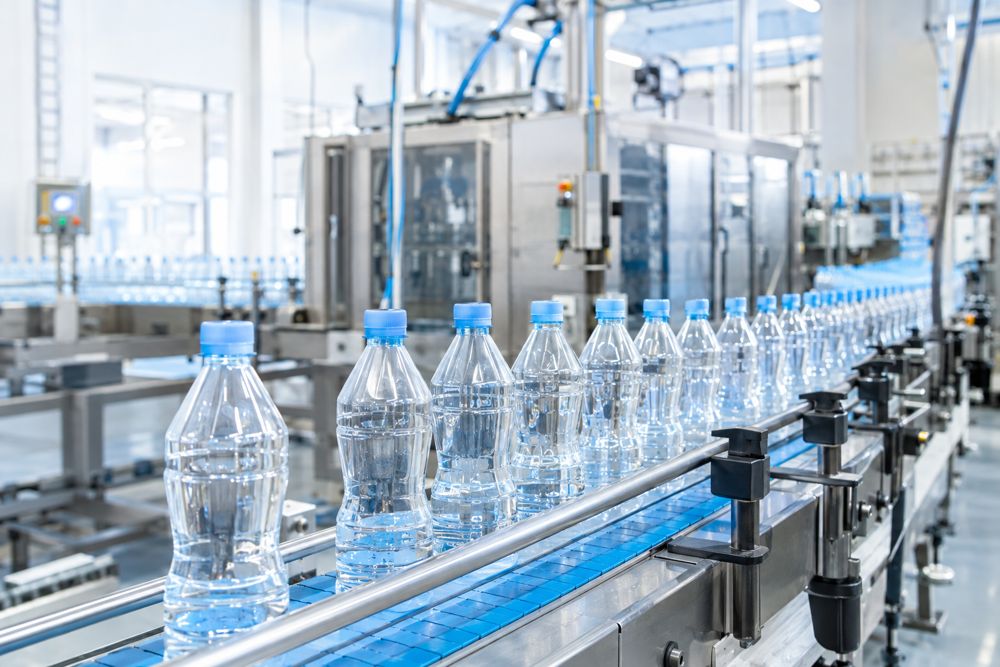

Packaged Water & Food
Bottle and tank disinfection, produce washing, CIP rinse and process water

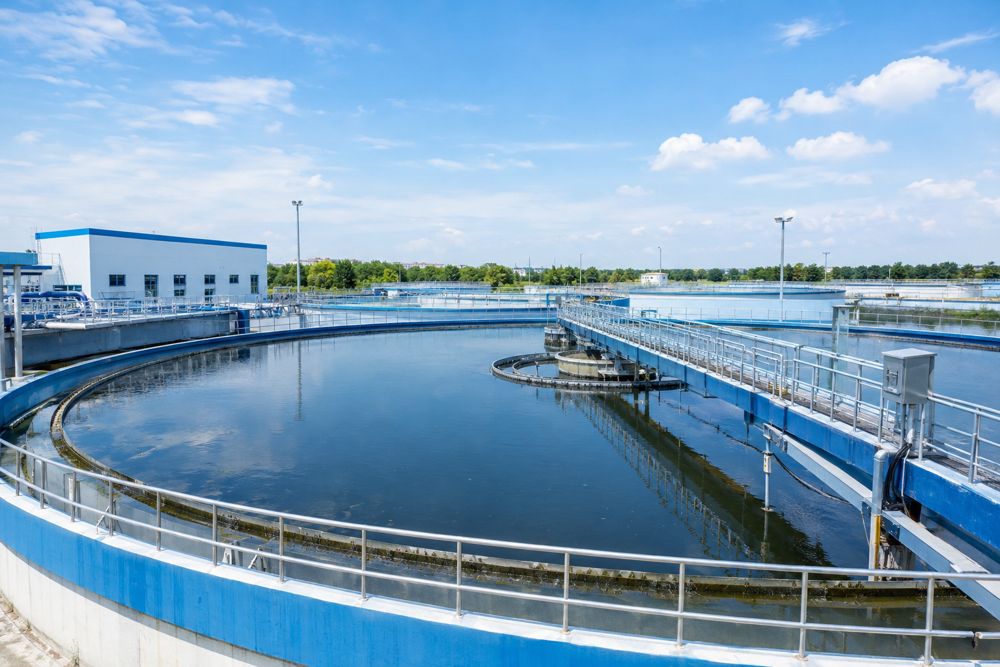

STP / ETP & Water Reuse
Tertiary disinfection, COD, colour and odour reduction before reuse or discharge

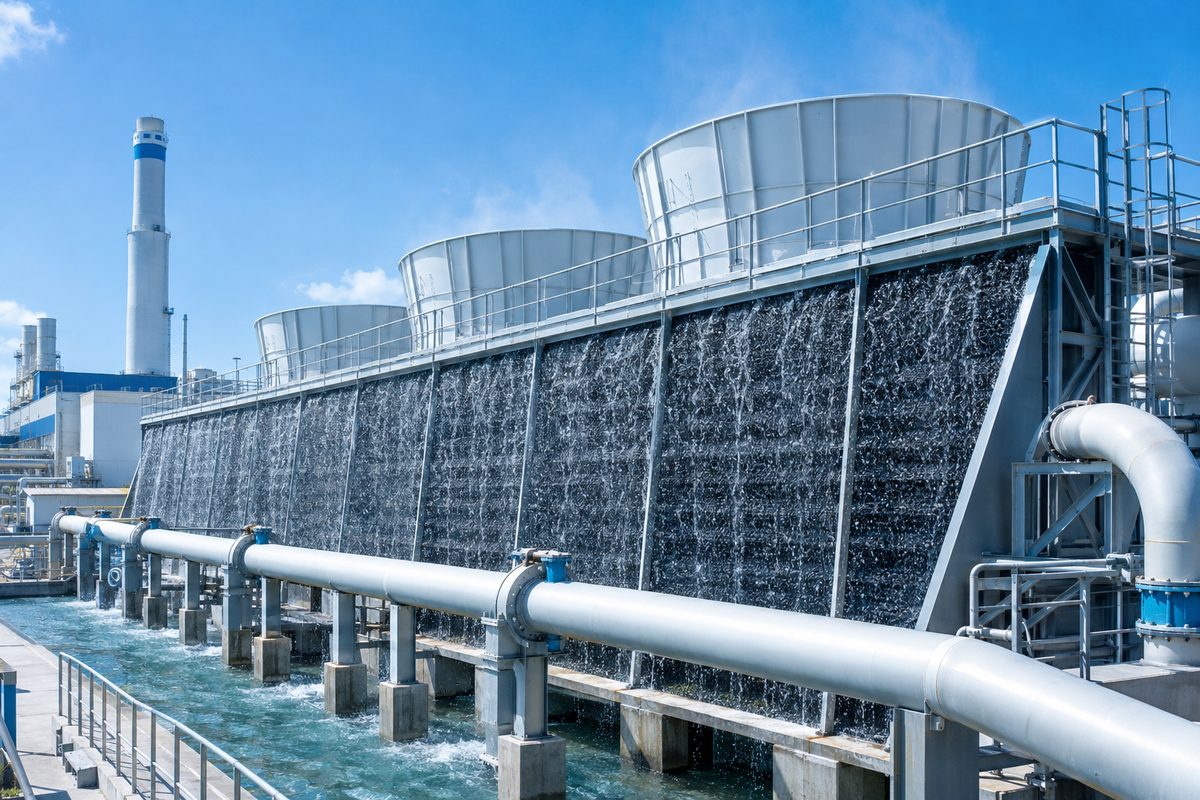

Cooling Towers
Biofouling and Legionella control with reduced biocide and blow-down
Swimming Pools & Spas
Crystal-clear water, fewer chloramines and less chlorine smell

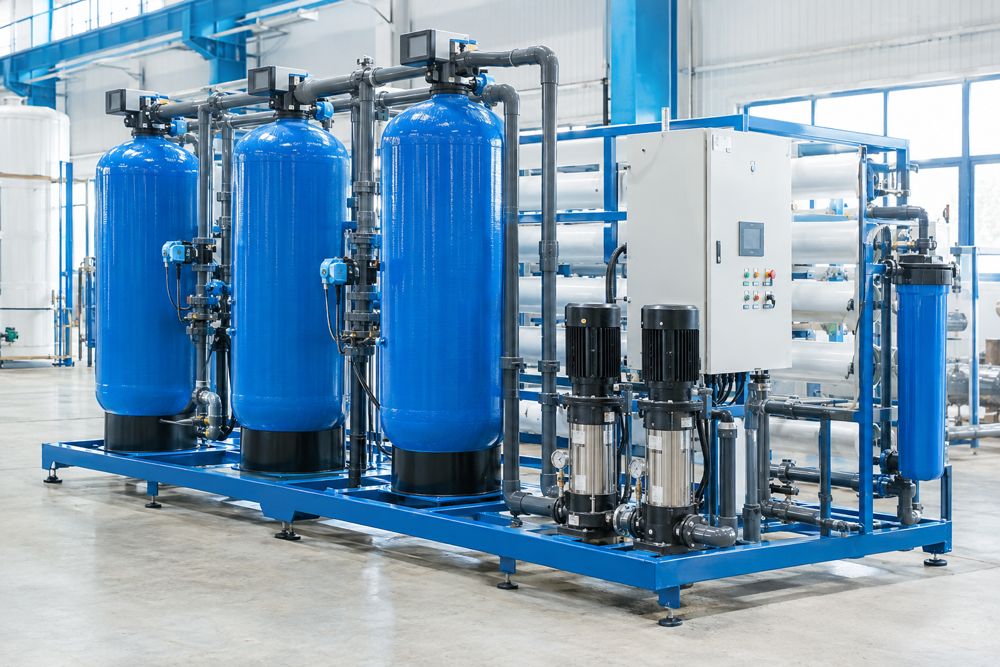

Industrial & RO Water
Raw water pre-treatment, RO pre / post disinfection and process water

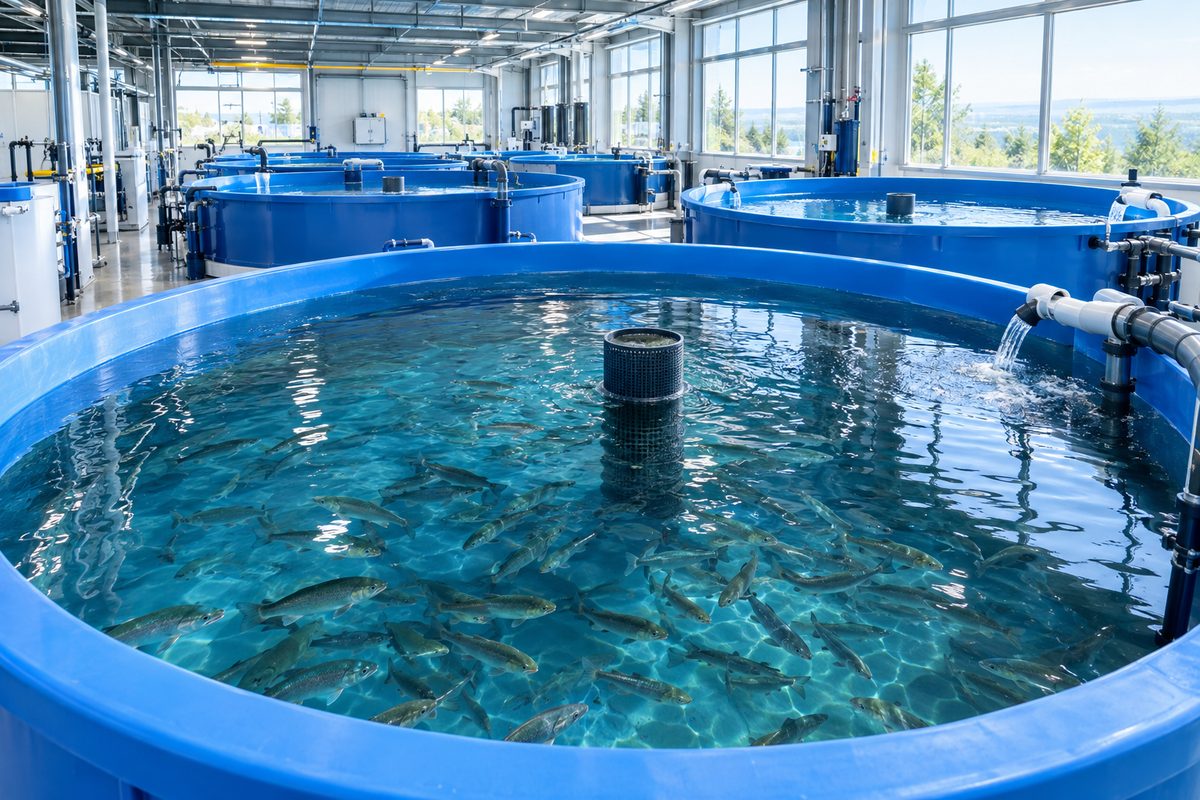

Aquaculture & Lakes
Recirculating aquaculture, aquariums, lake and pond remediation
APPLICATIONS IN AIR TREATMENT
Odour-Free, Hygienic Indoor and Exhaust Air
Controlled ozone dosing breaks down odours, smoke, VOCs and airborne microbes. Occupied spaces are kept within safe limits (typically below 0.05 ppm) using ambient ozone monitors and automatic cut-off.

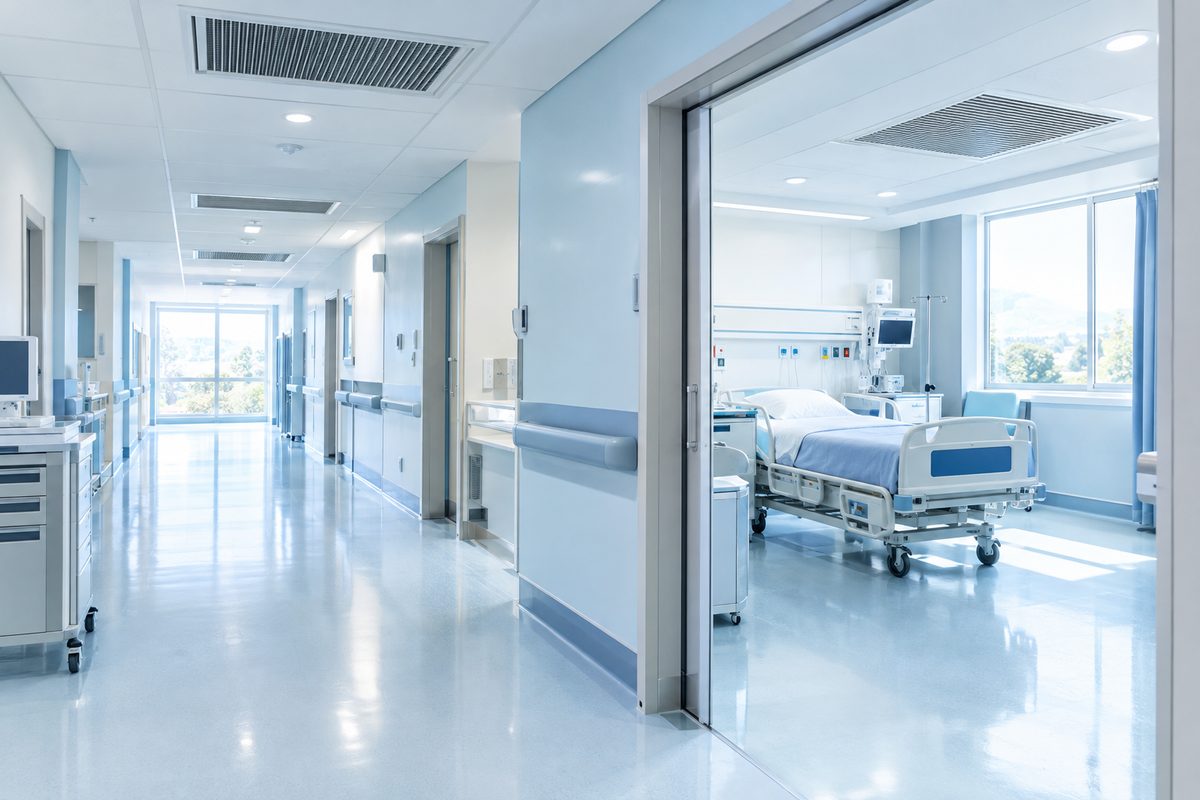

Hospitals & Mortuaries
Air disinfection, odour-free mortuaries, OT and isolation room fumigation (unoccupied)
Offices, Malls & Hotels
AHU-mounted ozonators for fresher indoor air, smoke and VOC removal

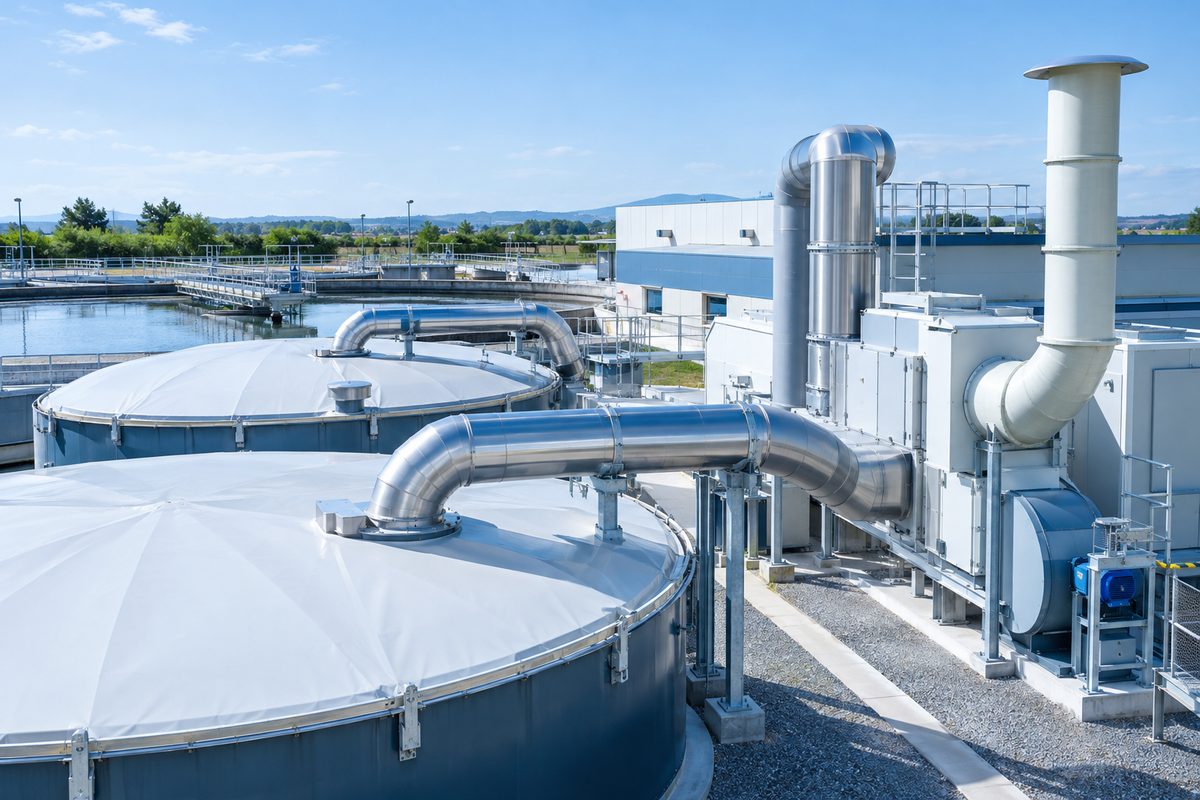

Exhaust & Odour Control
STP / ETP odour, H2S and industrial exhaust air treatment

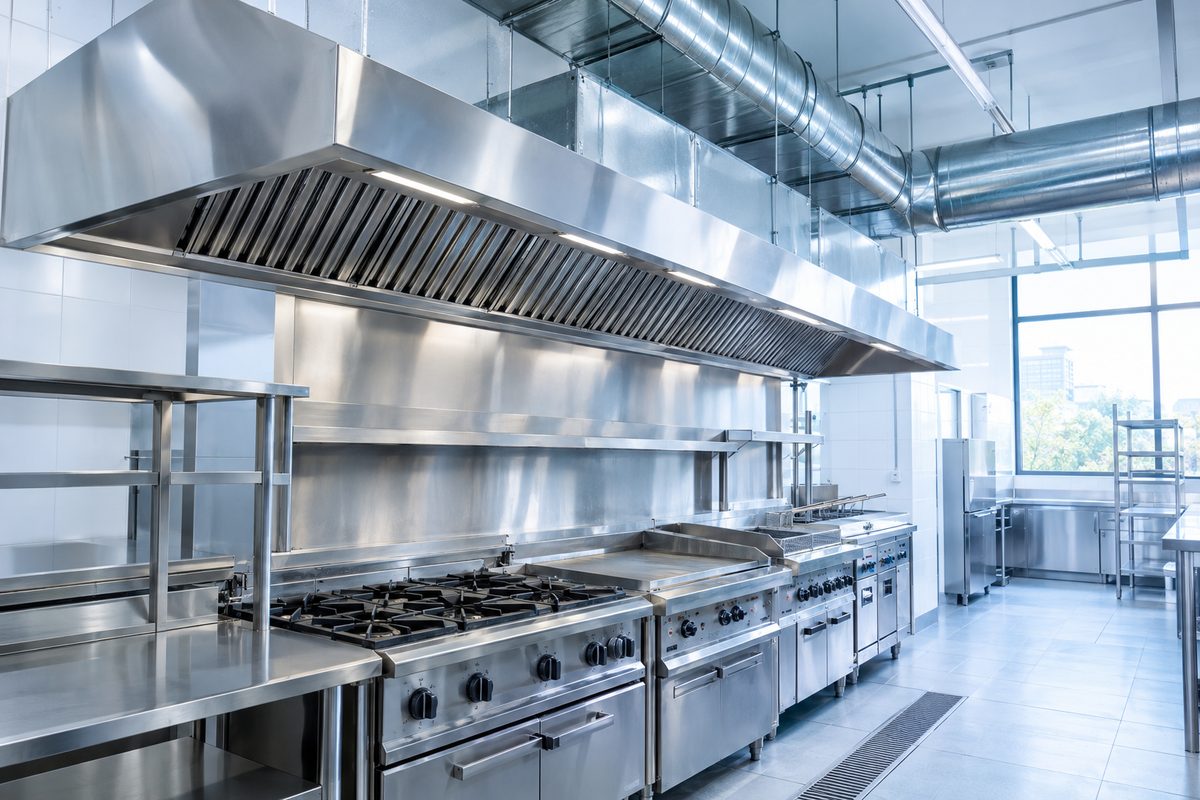

Commercial Kitchens
Grease and cooking odour reduction in kitchen exhaust ducts

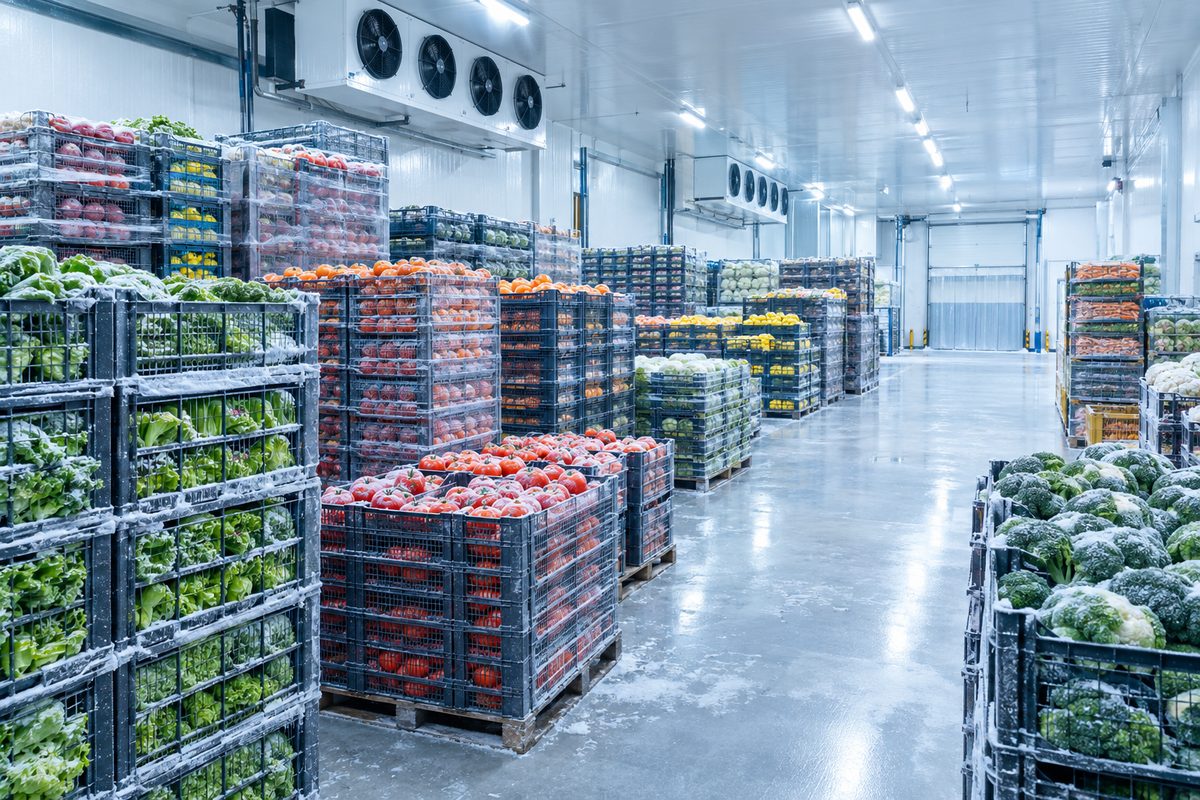

Cold & Grain Storage
Mould and ethylene control to extend the shelf life of fruits, vegetables and grains

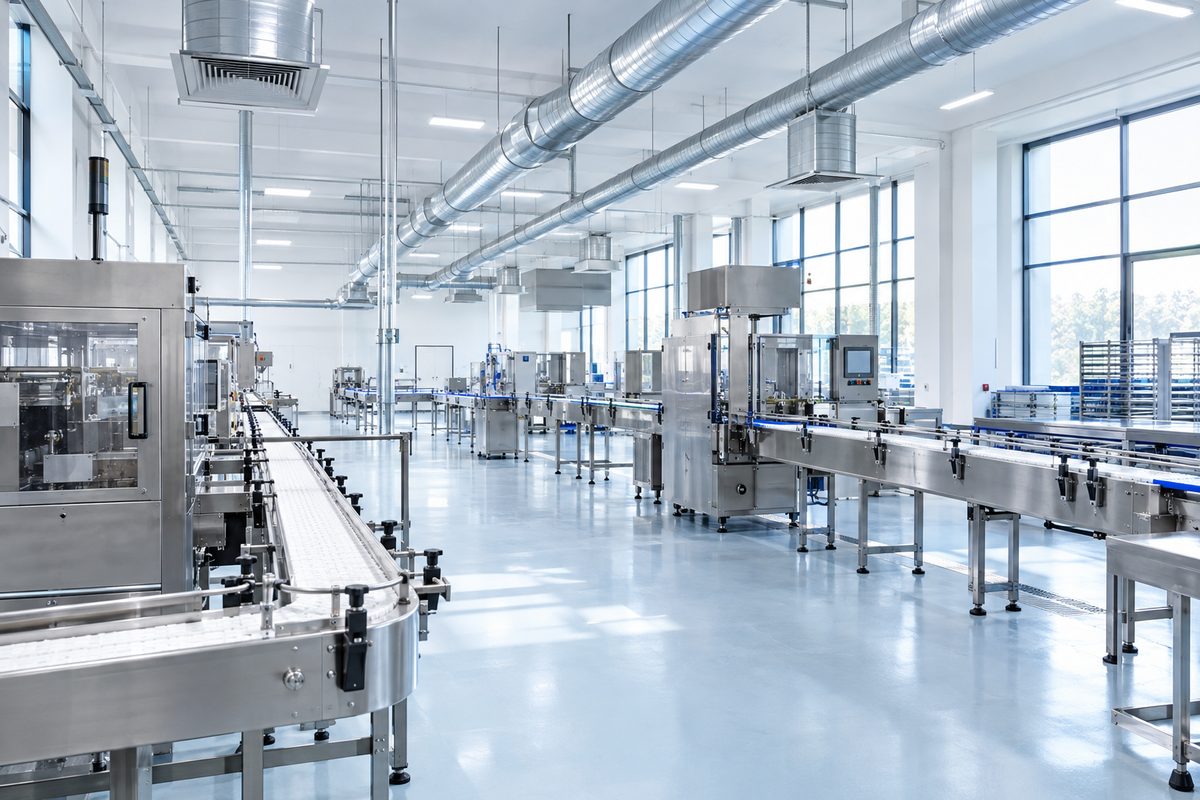

Food Processing Areas
Surface and room sanitation of production and packing halls, outside working hours

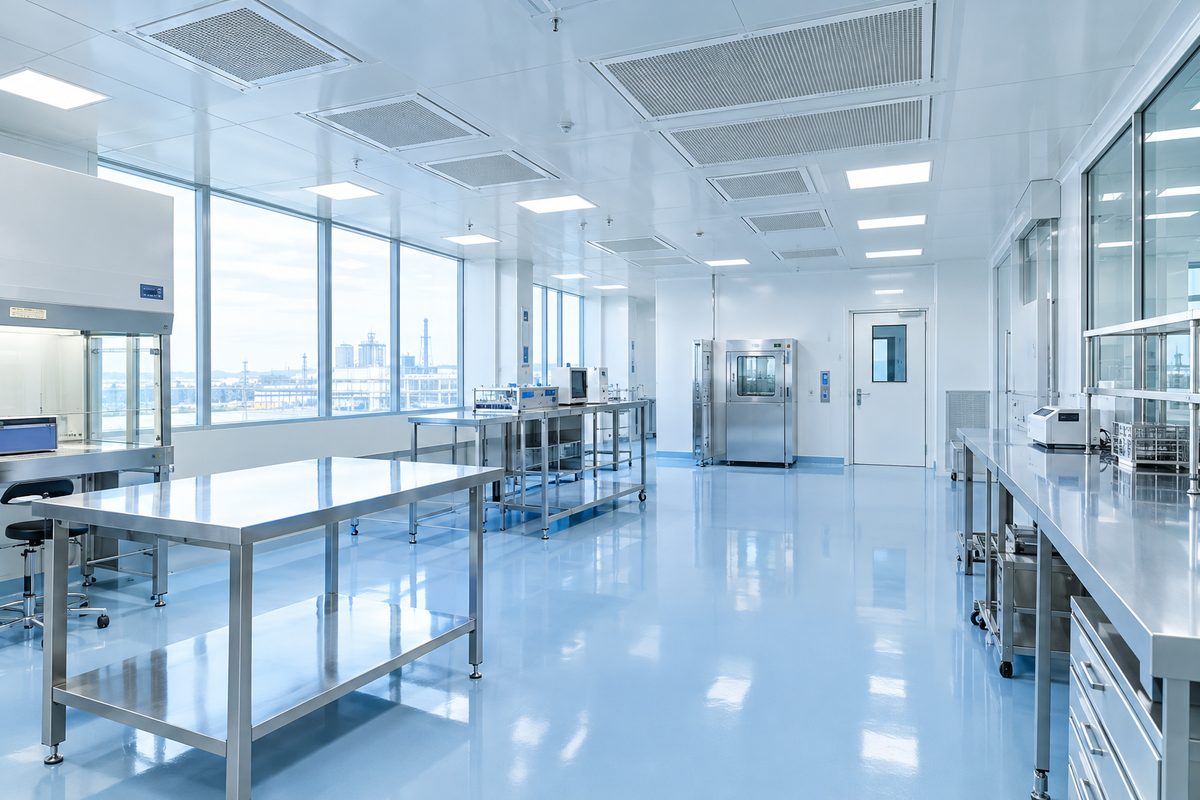

Clean Rooms & Labs
Fumigation and decontamination of clean rooms, labs and HVAC ducts

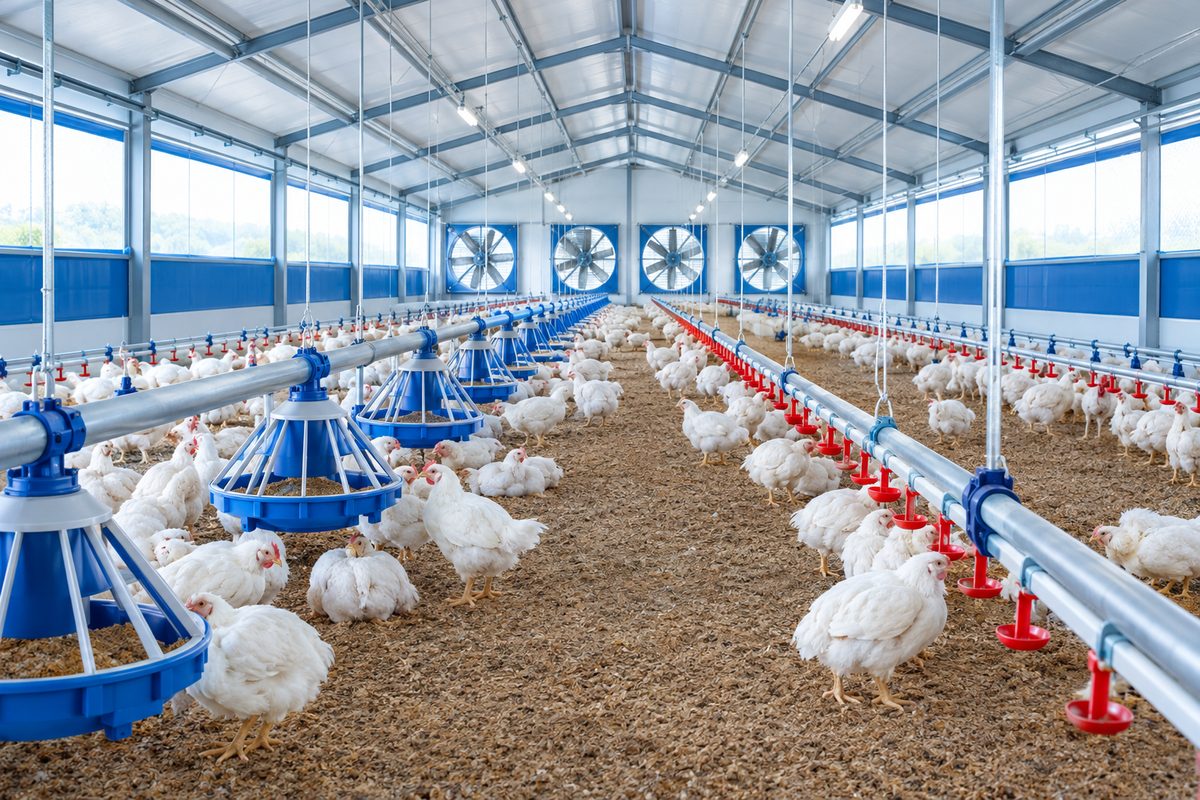

Poultry & Livestock
Ammonia and odour control in sheds, and disinfection of drinking water
Ozone above safe exposure limits must not be used in occupied spaces. High-dose room fumigation is carried out only when the area is unoccupied, followed by ventilation or catalytic ozone destruction.
WHY OZONE
Ozone Compared with Chlorine and UV
| Parameter | Ozone (O3) | Chlorine | UV-C |
|---|---|---|---|
| Oxidising strength | Very high (2.07 V) | Moderate (1.36 V) | Not an oxidant |
| Bacteria & viruses | Very fast inactivation | Effective, slower | Very fast inactivation |
| Cysts (Giardia, Cryptosporidium) | Effective | Poor | Effective |
| Colour, odour, taste, Fe / Mn | Removes | Partly | No effect |
| COD / organics | Reduces (AOP) | Minimal | Only with AOP |
| Chemical storage | None, generated on site | Gas or hypochlorite storage | None |
| Residual | Short-lived, decays to O2 | Lasting residual | None |
| Air treatment | Yes, odour & microbes | No | Surface / duct UV only |
Ozone and UV are often combined: ozone for oxidation and disinfection, followed by UV to destroy residual ozone before the point of use.

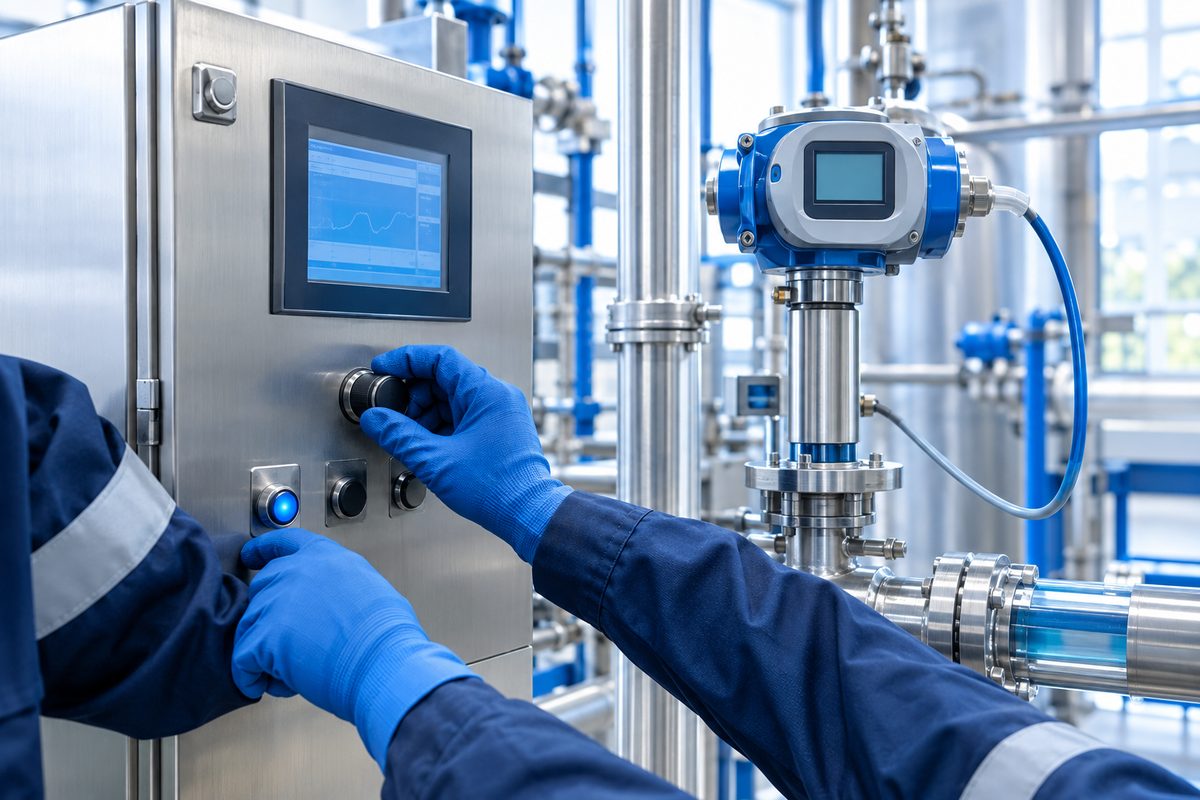

Why Choose Wateria Ozonators
Wide Capacity Range
From grams to 150 kg of ozone per hour.
Robust Construction
SS316 wetted parts and ozone-resistant PTFE / Kynar.
Energy Efficient
Oxygen-fed, high-concentration cells use less power.
Smart & Safe
PLC, ORP / dissolved ozone control, leak alarms.
Engineered Sizing
Based on ozone demand, CT value and trials.
Lifecycle Support
Spares, dielectric cells, AMC in India & UAE.
QUICK SELECTION GUIDE
Which Ozonator Fits Your Requirement?
| Range | Ozone Output | Feed Gas / Cooling | Typical Applications |
|---|---|---|---|
| Compact Ozonators | 0.5 – 100 g/h | Dry air or O2 / air-cooled | Labs, small plants, pools, aquaculture, room air |
| Industrial Ozonators | 200 – 800 g/h | O2 (PSA) / water-cooled | Process water, STP / ETP, cooling towers, F&B |
| Large Ozone Generators | 1 – 150 kg/h | PSA / LOX oxygen / water-cooled | Municipal water, large reuse, textile & paper effluent |
| Plasma Ozonators | Modular, high concentration | O2 / air or water-cooled | AOP, COD and colour removal, semiconductor, flue gas |
| Skid-Mounted Systems | As per flow & dose | Integrated O2 concentrator | Packaged water, RO, pools, reuse, aquaculture |
| Air Treatment Ozonators | mg/h to g/h | Ambient air / air-cooled | AHUs, exhaust ducts, kitchens, cold rooms, mortuaries |
Accessories supplied with our systems: oxygen concentrators, air dryers, venturi injectors, ozone diffusers, micro / nano bubble generators, static mixers, contact tanks, off-gas ozone destructors, automatic air vent valves, and ambient and dissolved ozone monitors. Final selection depends on flow, ozone demand, contact time and site conditions.
HOW WATERIA SUPPORTS YOU
From Enquiry to Lifetime Service
- 01
Application Study
Review of water or air quality, flow, volume and treatment goal.
- 02
Trials & Sizing
Ozone demand, CT value and treatability or pilot trials.
- 03
Supply & Integration
Ozonator, feed gas, injection, contact and destruct systems.
- 04
Installation & Commissioning
On-site start-up, safety checks and operator training.
- 05
Service & Spares
Dielectric cells, filters, monitors, AMC and upgrades.
Need an Ozonator Sized for Your Application?
Let's engineer the right ozone solution.
Share your flow rate or room volume, water or air quality and application. Our engineering team will recommend the right ozonation system and send a techno-commercial offer.
